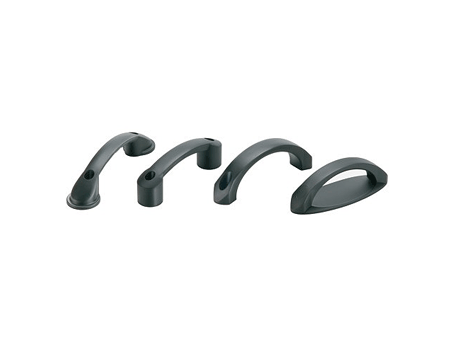

Plastic bow type handles, Fine structure plastic handles FK

Manufacturer	Rohde AG
Description	Plastic bow type handles, Fine structure plastic handles FK
Part number	FK-01.A100.84
Material	Polyamide PA 6, glass ball reinforced. Black with semi-matte fine grain structure.

CAD models

Request for quotation

Product selection

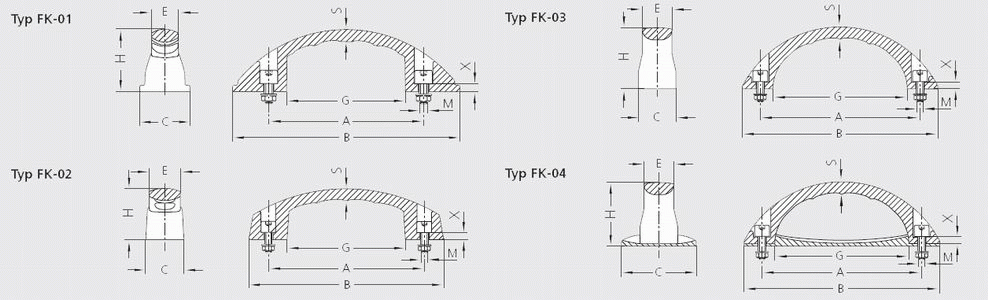

Index	Selector	Handle	Order no.	A (mm)	M	B (mm)	C (mm)	H (mm)	S (mm)	G (mm)	E (mm)	X (mm)
1	1	FK-01	FK-01.A100.84	100	M6 x 15	147	31	40	8	77	17	5
2	2	FK-01	FK-01.A120.84	120	M6 x 15	184	39	42	9	96	19	6
3	3	FK-01	FK-01.B120.84	120	M8 x 20	209	48	50	14	103	24	5
4	4	FK-01	FK-01.B140.84	140	M8 x 20	230	50	53	15	114	25	5
5	5	FK-01	FK-01.B160.84	160	M8 x 20	248	53	56	14	122	26	5
6	6	FK-02	FK-02.A100.84	100	M6 x 15	130	27	38	9	79	22	5
7	7	FK-02	FK-02.A120.84	120	M6 x 20	150	29	38	9	91	23	8
8	8	FK-02	FK-02.B120.84	120	M8 x 20	153	33	51	15	87	22	5
9	9	FK-02	FK-02.B140.84	140	M8 x 20	178	38	59	17	101	26	6
10	10	FK-03	FK-03.A100.84	100	M6 x 15	121	23	37	8	84	19	4
11	11	FK-03	FK-03.B120.84	120	M6 x 15	152	28	50	12	105	23	5
12	12	FK-03	FK-03.B140.84	140	M8 x 20	177	31	54	15	122	25	5.5
13	13	FK-04	FK-04.A100.84	100	M6 x 15	121	48	40	11	84	19	6
14	14	FK-04	FK-04.B120.84	120	M6 x 20	152	57	52	16	104	23	7
15	15	FK-04	FK-04.B140.84	140	M8 x 20	177	62	56	19	122	25	7.5
