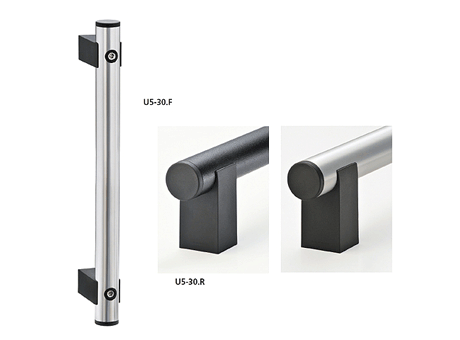

Handles of single elements, Tube Handle series U5-30.R

Manufacturer	Rohde AG
Description	Handles of single elements, Handle series U5-30R
Part number	U5-30.R200.01
Material	Aluminium AlMgSi 0.5, black powder coated with fine structure. Alternative tube made of stainless steel, material no. 1.4301, fine ground, or made of steel precision ground and high gloss chromium plated

CAD models

Request for quotation

Product selection

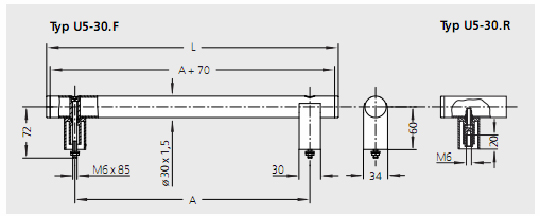

Index	Selector	Order-no.	A (mm)	L (mm)	Version
1	1	U5-30.R200.01	200	280	Alu-tube natural colour
2	2	U5-30.R250.01	250	330	Alu-tube natural colour
3	3	U5-30.R300.01	300	380	Alu-tube natural colour
4	4	U5-30.R350.01	350	430	Alu-tube natural colour
5	5	U5-30.R400.01	400	480	Alu-tube natural colour
6	6	U5-30.R500.01	500	580	Alu-tube natural colour
7	8	U5-30.R200.54	200	280	Alu-tube black powder coated
8	9	U5-30.R250.54	250	330	Alu-tube black powder coated
9	10	U5-30.R300.54	300	380	Alu-tube black powder coated
10	11	U5-30.R350.54	350	430	Alu-tube black powder coated
11	12	U5-30.R400.54	400	480	Alu-tube black powder coated
12	13	U5-30.R500.54	500	580	Alu-tube black powder coated
13	22	U5-30.R200.37	200	280	Stainless steel tube grinded
14	23	U5-30.R250.37	250	330	Stainless steel tube grinded
15	24	U5-30.R300.37	300	380	Stainless steel tube grinded
16	25	U5-30.R350.37	350	430	Stainless steel tube grinded
17	26	U5-30.R400.37	400	480	Stainless steel tube grinded
18	27	U5-30.R500.37	500	580	Stainless steel tube grinded
