Handles of single elements, Handle series VR-20, VR-30

Manufacturer	Rohde AG
Description	Handles of single elements, Handle Series VR-20, VR-30
Part number	VR-20.200.S01
Material	Round pipe of aluminium AlMgSi 0.5, natural-coloured or black coloured anodized, alternative stainless steel round pipe of 1.4301, fine ground. Handle shanks and end caps of polyamide PA6, black with fine-grain structure and removable thread insert of sta

CAD models

Product selection

Index	Selector	Order-no.	Version	Type	L (mm)	A (mm)

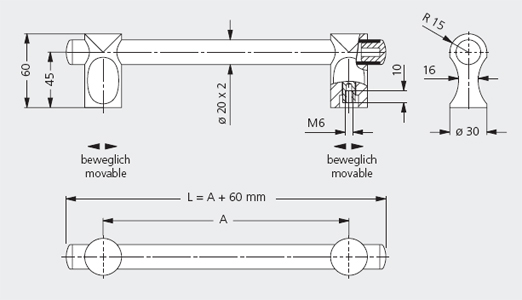

1	1	VR-20.200.S01	Tubes in anodized version natural coloured	VR-20	260	200
2	2	VR-20.250.S01	Tubes in anodized version natural coloured	VR-20	310	250
3	3	VR-20.300.S01	Tubes in anodized version natural coloured	VR-20	360	300

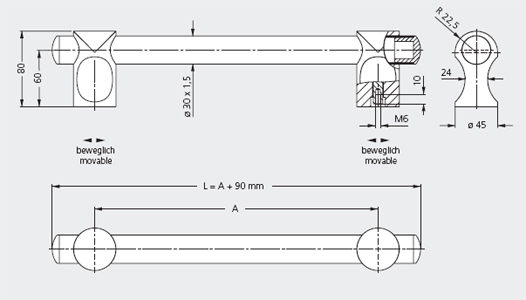

4	4	VR-30.300.S01	Tubes in anodized version natural coloured	VR-30	390	300
5	5	VR-30.400.S01	Tubes in anodized version natural coloured	VR-30	490	400
6	6	VR-30.500.S01	Tubes in anodized version natural coloured	VR-30	590	500

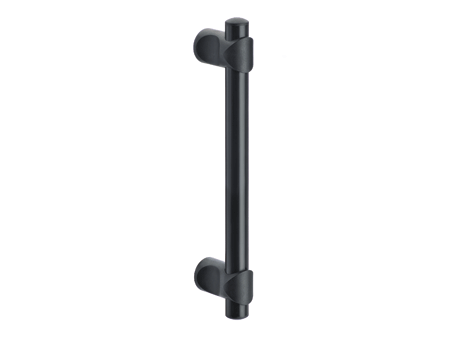

7	7	VR-20.200.S04	Tubes in anodized version black	VR-20	260	200
8	8	VR-20.250.S04	Tubes in anodized version black	VR-20	310	250
9	9	VR-20.300.S04	Tubes in anodized version black	VR-20	360	300
10	10	VR-30.300.S04	Tubes in anodized version black	VR-30	390	300
11	11	VR-30.400.S04	Tubes in anodized version black	VR-30	490	400
12	12	VR-30.500.S04	Tubes in anodized version black	VR-30	590	500
13	13	VR-20.200.S37	Stainless steel tube precision-ground	VR-20	260	200
14	14	VR-20.250.S37	Stainless steel tube precision-ground	VR-20	310	250
15	15	VR-20.300.S37	Stainless steel tube precision-ground	VR-20	360	300
16	16	VR-30.300.S37	Stainless steel tube precision-ground	VR-30	390	300
17	17	VR-30.400.S37	Stainless steel tube precision-ground	VR-30	490	400
18	18	VR-30.500.S37	Stainless steel tube precision-ground	VR-30	590	500
19	19	VR-20.000.84	Handle shank, 1 piece for tube Ø20x2,0	VR-20
20	20	RK-VR.020.9005	Tupe end caps, 1 piece for tube Ø20x2,0	VR-20
21	21	VR-30.000.84	Handle shank, 1 piece for tube Ø30x1,5	VR-30
22	22	RK-VR.030.9005	Tupe end caps, 1 piece for tube Ø30x1,5	VR-30
