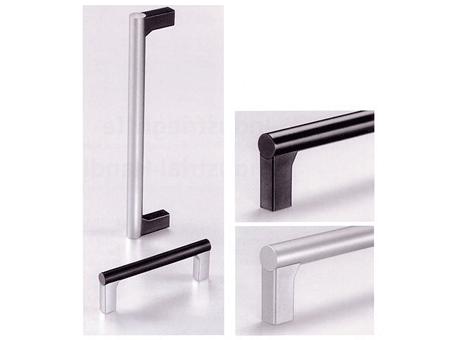

Handles of single elements, Handle series UR

Manufacturer	Rohde AG
Description	Handles of single elements, Handle series UR
Part number	UR-12.055.A01
Material	Handle shanks of glass ball reinforced polyamide (PA 6), black, similar RAL 9005 or aluminium coloured, semi-matte with fine structure.

CAD models

Request for quotation

Product selection

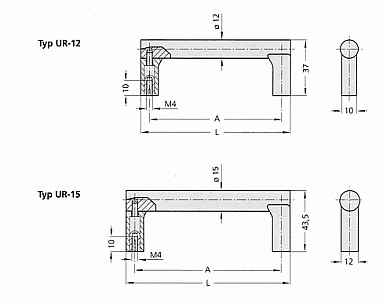

Index	Selector	Order-no.	L (mm)	A (mm)	shank colour	grip ledge
1	1	UR-12.055.A01	67	55	aluminium coloured	natural coloured anodized
2	2	UR-12.055.B01	67	55	black	natural coloured anodized
3	3	UR-12.088.A01	100	88	aluminium coloured	natural coloured anodized
4	4	UR-12.088.B01	100	88	black	natural coloured anodized
5	5	UR-12.100.A01	112	100	aluminium coloured	natural coloured anodized
6	6	UR-12.100.B01	112	100	black	natural coloured anodized
7	7	UR-12.120.A01	132	120	aluminium coloured	natural coloured anodized
8	8	UR-12.120.B01	132	120	black	natural coloured anodized
9	9	UR-12.180.A01	192	180	aluminium coloured	natural coloured anodized
10	10	UR-12.180.B01	192	180	black	natural coloured anodized
11	11	UR-12.200.A01	212	200	aluminium coloured	natural coloured anodized
12	12	UR-12.200.B01	212	200	black	natural coloured anodized
13	13	UR-12.235.A01	247	235	aluminium coloured	natural coloured anodized
14	14	UR-12.235.B01	247	235	black	natural coloured anodized
15	15	UR-12.250.A01	262	250	aluminium coloured	natural coloured anodized
16	16	UR-12.250.B01	262	250	black	natural coloured anodized
17	17	UR-12.055.A04	67	55	aluminium coloured	black anodized
18	18	UR-12.055.B04	67	55	black	black anodized
19	19	UR-12.088.A04	100	88	aluminium coloured	black anodized
20	20	UR-12.088.B04	100	88	black	black anodized
21	21	UR-12.100.A04	112	100	aluminium coloured	black anodized
22	22	UR-12.100.B04	112	100	black	black anodized
23	23	UR-12.120.A04	132	120	aluminium coloured	black anodized
24	24	UR-12.120.B04	132	120	black	black anodized
25	25	UR-12.180.A04	192	180	aluminium coloured	black anodized
26	26	UR-12.180.B04	192	180	black	black anodized
27	27	UR-12.200.A04	212	200	aluminium coloured	black anodized
28	28	UR-12.200.B04	212	200	black	black anodized
29	29	UR-12.235.A04	247	235	aluminium coloured	black anodized
30	30	UR-12.235.B04	247	235	black	black anodized
31	31	UR-12.250.A04	262	250	aluminium coloured	black anodized
32	32	UR-12.250.B04	262	250	black	black anodized
33	33	UR-15.055.A01	70	55	aluminium coloured	natural coloured anodized
34	34	UR-15.055.B01	70	55	black	natural coloured anodized
35	35	UR-15.088.A01	103	88	aluminium coloured	natural coloured anodized
36	36	UR-15.088.B01	103	88	black	natural coloured anodized
37	37	UR-15.100.A01	115	100	aluminium coloured	natural coloured anodized
38	38	UR-15.100.B01	115	100	black	natural coloured anodized
39	39	UR-15.120.A01	135	120	aluminium coloured	natural coloured anodized
40	40	UR-15.120.B01	135	120	black	natural coloured anodized
41	41	UR-15.180.A01	195	180	aluminium coloured	natural coloured anodized
42	42	UR-15.180.B01	195	180	black	natural coloured anodized
43	43	UR-15.200.A01	215	200	aluminium coloured	natural coloured anodized
44	44	UR-15.200.B01	215	200	black	natural coloured anodized
45	45	UR-15.235.A01	250	235	aluminium coloured	natural coloured anodized
46	46	UR-15.235.B01	250	235	black	natural coloured anodized
47	47	UR-15.250.A01	265	250	aluminium coloured	natural coloured anodized
48	48	UR-15.250.B01	265	250	black	natural coloured anodized
49	49	UR-15.055.A04	70	55	aluminium coloured	black anodized
50	50	UR-15.055.B04	70	55	black	black anodized
51	51	UR-15.088.A04	103	88	aluminium coloured	black anodized
52	52	UR-15.088.B04	103	88	black	black anodized
53	53	UR-15.100.A04	115	100	aluminium coloured	black anodized
54	54	UR-15.100.B04	115	100	black	black anodized
55	55	UR-15.120.A04	135	120	aluminium coloured	black anodized
56	56	UR-15.120.B04	135	120	black	black anodized
57	57	UR-15.180.A04	195	180	aluminium coloured	black anodized
58	58	UR-15.180.B04	195	180	black	black anodized
59	59	UR-15.200.A04	215	200	aluminium coloured	black anodized
60	60	UR-15.200.B04	215	200	black	black anodized
61	61	UR-15.235.A04	250	235	aluminium coloured	black anodized
62	62	UR-15.235.B04	250	235	black	black anodized
63	63	UR-15.250.A04	265	250	aluminium coloured	black anodized
64	64	UR-15.250.B04	265	250	black	black anodized

Documentation

Datasheet
