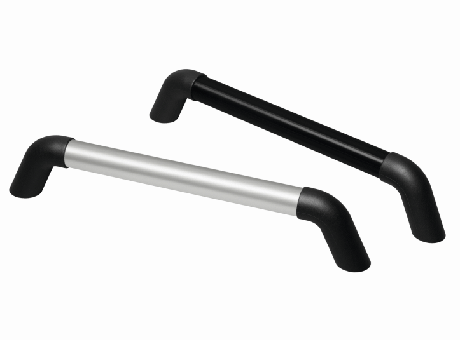

Handles of single Elements, Handle Series KR

Manufacturer	Rohde AG
Description	Handles of single Elements, Handle Series KR
Part number	KR-25.200.01
Material	Handle shanks made of polyamide PA6 glass ball reinforced, half-matt with fine structure. Handle ledge made of AlMgSi 0.5 in natural colour or black anodized

CAD models

Request for quotation

Product selection

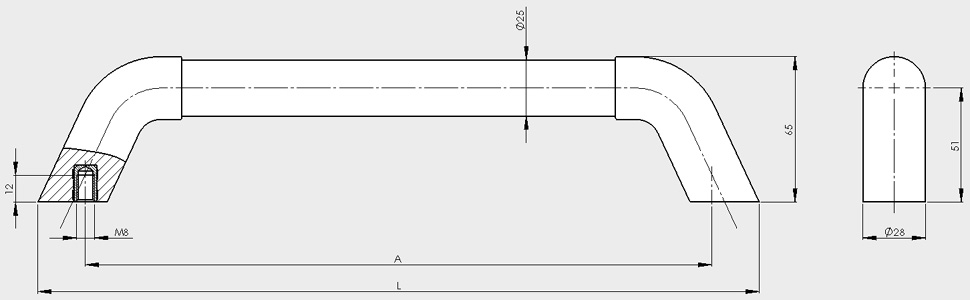

Index	Selector	Order no.	A (mm)	L (mm)	Colour
1	1	KR-25.200.01	200	242	ledge natural colour anodized
2	2	KR-25.250.01	250	292	ledge natural colour anodized
3	3	KR-25.300.01	300	342	ledge natural colour anodized
4	4	KR-25.350.01	350	392	ledge natural colour anodized
5	5	KR-25.400.01	400	442	ledge natural colour anodized
6	6	KR-25.500.01	500	542	ledge natural colour anodized
7	7	KR-25.200.04	200	242	ledge black anodized
8	8	KR-25.250.04	250	292	ledge black anodized
9	9	KR-25.300.04	300	342	ledge black anodized
10	10	KR-25.350.04	350	392	ledge black anodized
11	11	KR-25.400.04	400	442	ledge black anodized
12	12	KR-25.500.04	500	542	ledge black anodized
13	13	KR-25.200.G7046	200	242	ledge polyacetal grey
14	16	KR-25.200.S84	200	242	ledge polyacetal black
15	15	KR-25.250.G7046	250	292	ledge polyacetal grey
16	14	KR-25.250.S84	250	292	ledge polyacetal black
