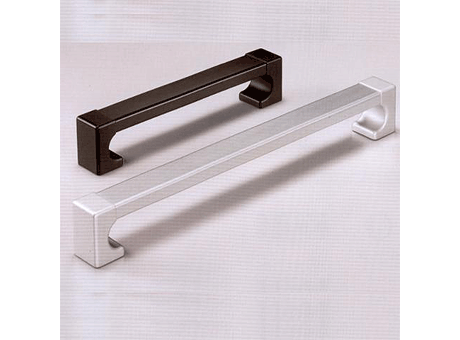

Handles of single elements, Handle series AR

Manufacturer	Rohde AG
Description	Handles of single elements AR
Part number	AR-36.250.N01
Material	Handle shanks and handle cross rail of aluminium-profile AlMgSi0,5.

CAD models

Product selection

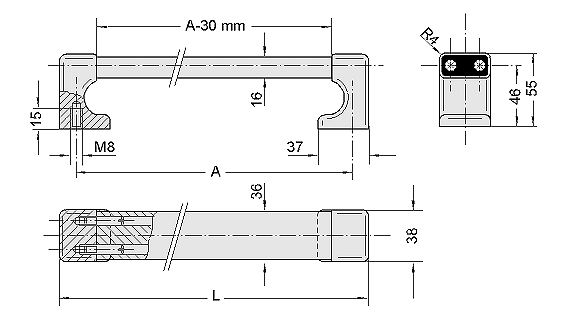

Index	Selector	Order-no.	A (mm)	L (mm)	shanks-colour
1	1	AR-36.250.N01	250	274	natural
2	2	AR-36.250.S01	250	274	black
3	3	AR-36.300.N01	300	324	natural
4	4	AR-36.300.S01	300	324	black
5	5	AR-36.350.N01	350	374	natural
6	6	AR-36.350.S01	350	374	black
7	7	AR-36.400.N01	400	424	natural
8	8	AR-36.400.S01	400	424	black
9	9	AR-36.500.N01	500	524	natural
10	10	AR-36.500.S01	500	524	black
11	11	AR-36.600.N01	600	624	natural
12	12	AR-36.600.S01	600	624	black
13	13	AR-36.700.N01	700	724	natural
14	14	AR-36.700.S01	700	724	black
15	15	AR-36.800.N01	800	824	natural
16	16	AR-36.800.S01	800	824	black
17	17	AR-36.250.S04	250	274	black
18	18	AR-36.300.S04	300	324	black
19	19	AR-36.350.S04	350	374	black
20	20	AR-36.400.S04	400	424	black
21	21	AR-36.500.S04	500	524	black
22	22	AR-36.600.S04	600	624	black
23	23	AR-36.700.S04	700	724	black
24	24	AR-36.800.S04	800	824	black
25	25	AR-36.250.55	250	274	natural
26	26	AR-36.250.55	250	274	black
27	27	AR-36.300.55	300	324	natural
28	28	AR-36.300.55	300	324	black
29	29	AR-36.350.55	350	374	natural
30	30	AR-36.350.55	350	374	black
31	31	AR-36.400.55	400	424	natural
32	32	AR-36.400.55	400	424	black
33	41	AR-36.500.55	500	524	natural
34	42	AR-36.500.55	500	524	black
35	43	AR-36.600.55	600	624	natural
36	44	AR-36.600.55	600	624	black
37	45	AR-36.700.55	700	724	natural
38	46	AR-36.700.55	700	724	black
39	47	AR-36.800.55	800	824	natural
40	48	AR-36.800.55	800	824	black
