Functional handles, Handle series FG7

Manufacturer	Rohde AG
Description	Functional handles, Handle series FG7
Part number	FG7-01.GA160.01
Material	Tube o 30 x 5 mm of aluminium AlMgSi 0.5, fine ground and black anodized. Handle shanks of polyamide PA 6, glass ball reinforced, black with fine grain structure.

CAD models

Request for quotation

Product selection

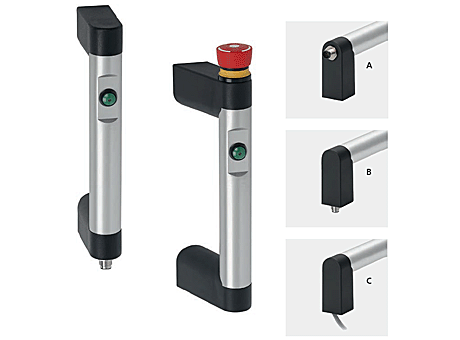

Index	Selector	Order-no.	Connecting	Version	Switching version
1	1	FG7-01.GA160.01	A	straight	without emergency stop, 1 push button
2	2	FG7-01.LA160.01	A	left	without emergency stop, 1 push button
3	3	FG7-01.RA160.01	A	right	without emergency stop, 1 push button
4	4	FG7-01.GB160.01	B	straight	without emergency stop, 1 push button
5	5	FG7-01.GC160.01	C	straight	without emergency stop, 1 push button
6	6	FG7-01.LC160.01	C	left	without emergency stop, 1 push button
7	7	FG7-01.RC160.01	C	right	without emergency stop, 1 push button
8	8	FG7-04.GA160.01	A	straight	with emergency stop, 1 push button
9	9	FG7-04.LA160.01	A	left	with emergency stop, 1 push button
10	10	FG7-04.RA160.01	A	right	with emergency stop, 1 push button
11	11	FG7-04.GB160.01	B	straight	with emergency stop, 1 push button
12	12	FG7-04.GC160.01	C	straight	with emergency stop, 1 push button
13	13	FG7-04.LC160.01	C	left	with emergency stop, 1 push button
14	14	FG7-04.RC160.01	C	right	with emergency stop, 1 push button
15	15	FG7-02.GA220.04	A	straight	without emergency stop, 2 push button
16	16	FG7-02.LA220.04	A	left	without emergency stop, 2 push button
17	17	FG7-02.RA220.04	A	right	without emergency stop, 2 push button
18	18	FG7-02.GB220.04	B	straight	without emergency stop, 2 push button
19	19	FG7-02.GC220.04	C	straight	without emergency stop, 2 push button
20	20	FG7-02.LC220.04	C	left	without emergency stop, 2 push button
21	21	FG7-02.RC220.04	C	right	without emergency stop, 2 push button
22	22	FG7-05.GA220.04	A	straight	with emergency stop, 2 push button
23	23	FG7-05.LA220.04	A	left	with emergency stop, 2 push button
24	24	FG7-05.RA220.04	A	right	with emergency stop, 2 push button
25	25	FG7-05.GB220.04	B	straight	with emergency stop, 2 push button
26	26	FG7-05.GC220.04	C	straight	with emergency stop, 2 push button
27	27	FG7-05.LC220.04	C	left	with emergency stop, 2 push button
28	28	FG7-05.RC220.04	C	right	with emergency stop, 2 push button

Documentation

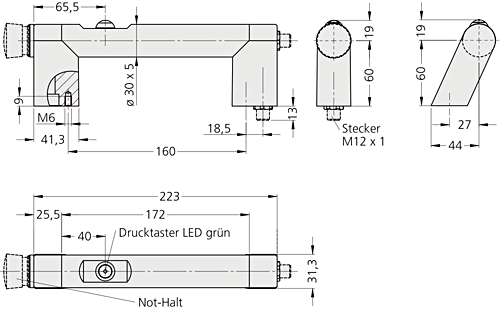

Datasheet FG7-01, FG7-04

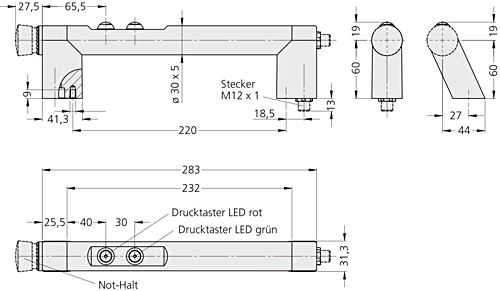

Datasheet FG7-02, FG7-05
