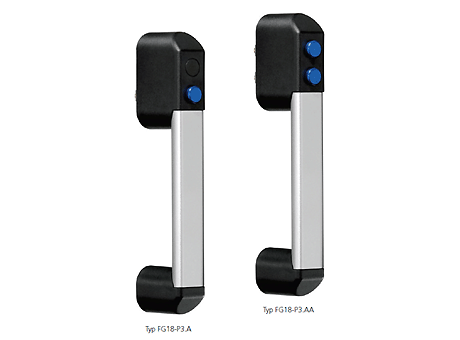

Functional handles, Handle series FG18-P3

Manufacturer	Rohde AG
Description	Functional handle FG18-P3, with 1 valve, position V-A
Part number	FG18-P3.A140.11
Material	Handle shanks made of polyamide PA6, glass ball reinforced in black with fine structure. Connecting ledge made of profiled aluminum AlMgSi 0.5; glass ball blasted and natural anodized.
Note	Connection: Push In connector for ø 4 mm hose.

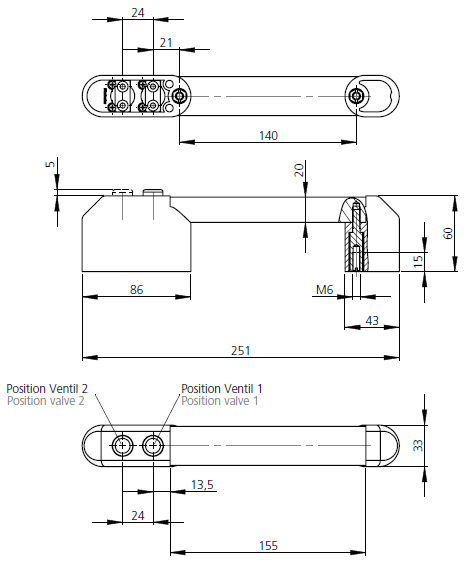

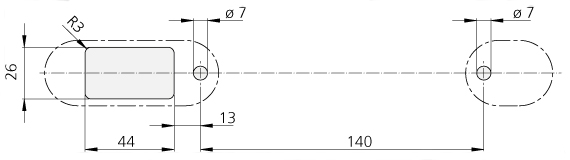

CAD models

Request for quotation

Product selection

Index	Selector	Order number	Version	Position valve 1	Position valve 2
1	1	FG18-P3.A140.11	with 1 valve	V-A	-
2	2	FG18-P3.B140.11	with 1 valve	V-B	-
3	3	FG18-P3.AA140.11	with 2 valves	V-A	V-A
4	4	FG18-P3.AB140.11	with 2 valves	V-A	V-B
5	5	FG18-P3.BA140.11	with 2 valves	V-B	V-A
6	6	FG18-P3.BB140.11	with 2 valves	V-B	V-B

Documentation

Contact the supplier
