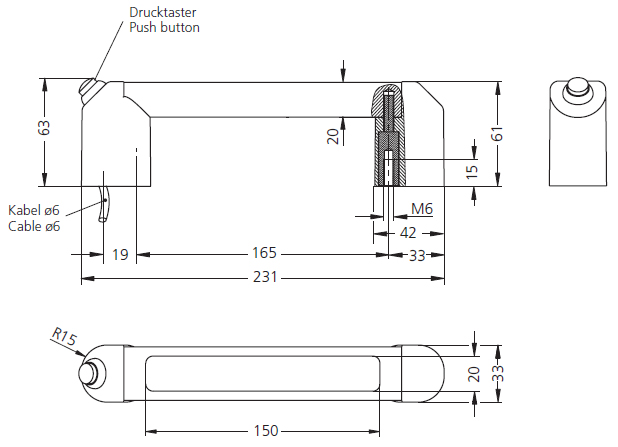

Functional handles, Handle series FG12-LL

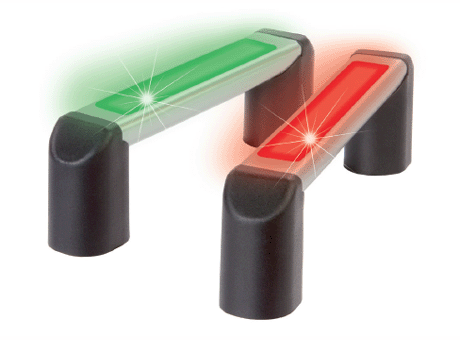

Compact functional handle with a three-coloured illuminatable handle ledge

Manufacturer	Rohde AG
Description	Functional handles, Handle series FG12-LL, without push button, with LED-illumination
Part number	FG12-LL10.165.11
Material and surface	Handle shanks made of polyamide PA 6, black with a fine structure. Handle ledge made of extruded oval-profiled aluminium AlMgSi 0.5; glass ball blasted and anodized in natural colour. Illuminatable plastic insert made of translucent PMMA.
Function elements	Push button (change-over contact)
Connection	5 m connection cable leading out of the mounting surface of the handle shank. Version with an 8-pole connector on request.
Protection class	IP 65.
Note	Other handle lengths and switching element assignments, as well as white handle ledge lighting on request.
