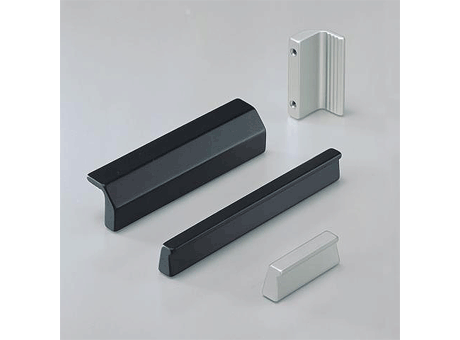

Front panel handles, ledge handles and casing feet, Ledge handles LG-01 to LG-05

Manufacturer	Rohde AG
Description	Front panel handles, ledge handles and casing feet, Ledge handles LG-01 to LG-05
Part number	LG-01.030.01
Material	Profiled aluminium AlMgSi 0.5

CAD models

Product selection

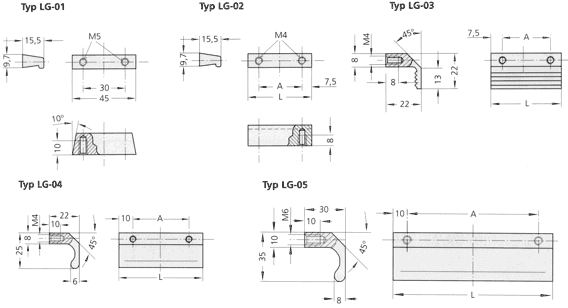

Index	Selector	Order-no.	L (mm)	A (mm)
1	1	LG-01.030.01	45	30
2	2	LG-01.030.04	45	30
3	3	LG-02.030.01	45	30
4	4	LG-02.045.01	60	45
5	5	LG-02.070.01	85	70
6	6	LG-02.090.01	105	90
7	7	LG-02.105.01	120	105
8	8	LG-02.030.04	45	30
9	9	LG-02.045.04	60	45
10	10	LG-02.070.04	85	70
11	11	LG-02.090.04	105	90
12	12	LG-02.105.04	120	105
13	13	LG-03.030.01	45	30
14	14	LG-03.045.01	60	45
15	15	LG-03.070.01	85	70
16	16	LG-03.090.01	105	90
17	17	LG-03.105.01	120	105
18	18	LG-03.030.04	45	30
19	19	LG-03.045.04	60	45
20	20	LG-03.070.04	85	70
21	21	LG-03.090.04	105	90
22	22	LG-03.105.04	120	105
23	23	LG-04.030.01	50	30
24	24	LG-04.045.01	65	45
25	25	LG-04.064.01	84	64
26	26	LG-04.070.01	90	70
27	27	LG-04.080.01	100	80
28	28	LG-04.090.01	110	90
29	29	LG-04.030.04	50	30
30	30	LG-04.045.04	65	45
31	31	LG-04.064.04	84	64
32	32	LG-04.070.04	90	70
33	33	LG-04.080.04	100	80
34	34	LG-04.090.04	110	90
35	35	LG-04.030.05	50	30
36	36	LG-04.045.05	65	45
37	37	LG-04.064.05	84	64
38	38	LG-04.070.05	90	70
39	39	LG-04.080.05	100	80
40	40	LG-04.090.05	110	90
41	41	LG-05.064.01	84	64
42	42	LG-05.070.01	90	70
43	43	LG-05.080.01	100	80
44	44	LG-05.090.01	110	90
45	45	LG-05.105.01	125	105
46	46	LG-05.064.04	84	64
47	47	LG-05.070.04	90	70
48	48	LG-05.080.04	100	80
49	49	LG-05.090.04	110	90
50	50	LG-05.105.04	125	105
51	51	LG-05.064.05	84	64
52	52	LG-05.070.05	90	70
53	53	LG-05.080.05	100	80
54	54	LG-05.090.05	110	90
55	55	LG-05.105.05	125	105
