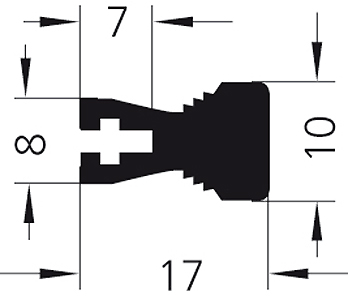

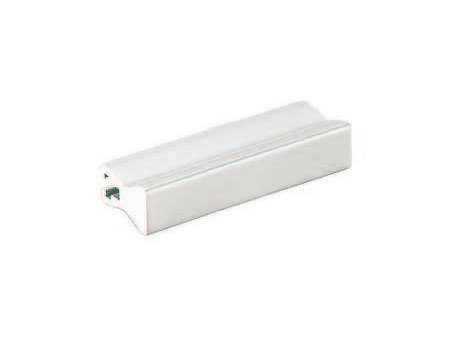

Front panel handles, ledge handles and casing feet, Front panel ledge handles F4

Manufacturer	Rohde AG
Description	Front panel handles, ledge handles and casing feet, Front panel ledge handles F4
Part number	F4-03.014.01
Material	Aluminium profile AlMgSi 0.5

CAD models

Product selection

Index	Selector	Order-no.	L (mm)	R (mm)	Z (mm)
1	45	F4-03.014.01	14.6	15.24	3
2	46	F4-04.019.01	19.7	20.32	4
3	47	F4-05.024.01	24.8	25.4	5
4	48	F4-06.029.01	29.9	30.48	6
5	49	F4-08.040.01	40	40.64	8
6	50	F4-12.060.01	60.3	60.96	12
7	51	F4-14.070.01	70.5	71.12	14
8	52	F4-20.101.01	101	101.6	20
9	53	F4-42.212.01	212.6	213.36	42
10	54	F4-60.304.01	304.1	304.8	60
11	55	F4-84.426.01	426	426.72	84
12	56	F4-03.014.04	14.6	15.24	3
13	57	F4-04.019.04	19.7	20.32	4
14	58	F4-05.024.04	24.8	25.4	5
15	59	F4-06.029.04	29.9	30.48	6
16	60	F4-08.040.04	40	40.64	8
17	61	F4-12.060.04	60.3	60.96	12
18	62	F4-14.070.04	70.5	71.12	14
19	63	F4-20.101.04	101	101.6	20
20	64	F4-42.212.04	212.6	213.36	42
21	65	F4-60.304.04	304.1	304.8	60
22	66	F4-84.426.04	426	426.72	84
