Aluminium bow type handles, Handle series AG

Manufacturer	Rohde AG
Description	Aluminium bow type handles, Handle series AG, A = 120
Part number	AG-22.R120.11
Material	profiled aluminium AlMgSi 0,5

CAD models

Product selection

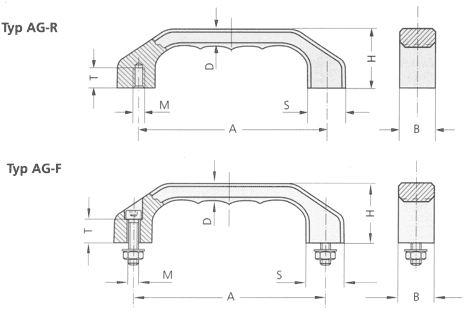

Index	Selector	Order no.	Color	A (mm)	L (mm)	M	T (mm)	H (mm)	B (mm)	D (mm)	S (mm)	Type
1	1	AG-22.R120.11	natural colour anodized	120	146	6	12	39	22	10.5	24	Standard
2	2	AG-25.R140.11	natural colour anodized	140	170	8	15	45	25	12	28	Standard
3	3	AG-28.R160.11	natural colour anodized	160	194	8	15	52	28	13.5	32	Standard
4	4	AG-22.R120.14	black anodized	120	146	6	12	39	22	10.5	24	Standard
5	5	AG-25.R140.14	black anodized	140	170	8	15	45	25	12	28	Standard
6	6	AG-28.R160.14	black anodized	160	194	8	15	52	28	13.5	32	Standard
7	10	AG-22.F120.11	natural colour anodized	120	146	6x25	15	39	22	10.5	24	Standard
8	11	AG-22.F120.14	black anodized	120	146	6x25	15	39	22	10.5	24	Standard
9	13	AG-25.F140.11	natural colour anodized	140	170	8x30	16	45	25	12	28	Standard
10	14	AG-25.F140.14	black anodized	140	170	8x30	16	45	25	12	28	Standard
11	16	AG-28.F160.11	natural colour anodized	160	194	8x32	20	52	28	13.5	32	Standard
12	17	AG-28.F160.14	black anodized	160	194	8x32	20	52	28	13.5	32	Standard
13	19	AG-22.R120.54	black	120	146	6	12	39	22	10.5	24	Economy
14	20	AG-25.R140.54	black	140	170	8	15	45	25	12	28	Economy
15	21	AG-28.R160.54	black	160	194	8	15	52	28	13.5	32	Economy
16	22	AG-22.R120.9006	silver	120	146	6	12	39	22	10.5	24	Economy
17	23	AG-25.R140.9006	silver	140	170	8	15	45	25	12	28	Economy
18	24	AG-28.R160.9006	silver	160	194	8	15	52	28	13.5	32	Economy
19	25	AG-22.F120.54	black	120	146	6x25	15	39	22	10.5	24	Economy
20	26	AG-25.F140.54	black	140	170	8x30	16	45	25	12	28	Economy
21	27	AG-28.F160.54	black	160	194	8x32	20	52	28	13.5	32	Economy
22	28	AG-22.F120.9006	silver	120	146	6x25	15	39	22	10.5	24	Economy
23	29	AG-25.F140.9006	silver	140	170	8x30	16	45	25	12	28	Economy
24	30	AG-28.F160.9006	silver	160	194	8x32	20	52	28	13.5	32	Economy
