Locking assembly - self-centering TLK 451

Manufacturer	Rexnord Tollok srl
Description	Locking Assembly, self centering, d= 70 mm, D= 110 mm
Part number	TLK 451 70x110

CAD models

Request for quotation

Product selection

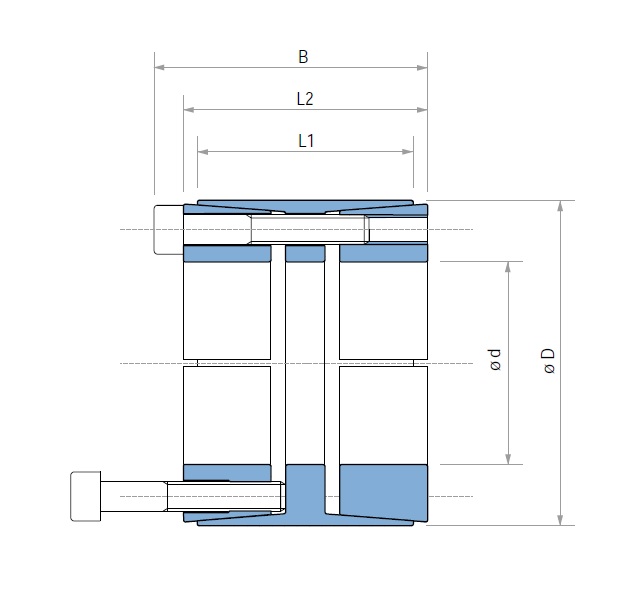

Index	Selector	Part Number	d x D (mm)	L1 (mm)	L2 (mm)	B (mm)	Tightening Screws (DIN 912)	Tightening torque - Ms (N.m)	Torque - Mt (N.m)	Axial force - F ax (kN)	Surface Pressure on Shaft - pw (N/mm²)	Surface Pressure on Hub - pn (N/mm²)	Weight (kg)
1	1	TLK 451 70x110	70 x 110	50	60	70	8 x M10	49	4180	120	113	64	2.3
2	2	TLK 451 80x120	80 x 120	50	60	70	10 x M10	49	5980	150	124	73	2.5
3	3	TLK 451 90x130	90 x 130	50	60	70	11 x M10	49	7400	165	121	75	2.7
4	4	TLK 451 100x145	100 x 145	60	70	82	10 x M12	86	10930	219	121	74	4.1
5	5	TLK 451 110x155	110 x 155	60	70	82	10 x M12	86	12000	219	110	69	4.4
6	6	TLK 451 120x165	120 x 165	60	70	82	11 x M12	86	14400	241	111	72	4.8
7	7	TLK 451 130x180	130 x 180	65	79	91	14 x M12	86	19900	306	118	77	6.3
8	8	TLK 451 140x190	140 x 190	65	79	91	15 x M12	86	22900	328	117	78	6.6
9	9	TLK 451 150x200	150 x 200	65	79	91	15 x M12	86	24600	328	110	74	7.8
10	10	TLK 451 160x210	160 x 210	65	79	91	16 x M12	86	28000	350	110	75	7.4
11	11	TLK 451 170x225	170 x 225	78	92	106	15 x M14	135	37800	446	109	74	10.7
12	12	TLK 451 180x235	180 x 235	78	92	106	15 x M14	135	40100	446	103	71	11.3
13	13	TLK 451 190x250	190 x 250	88	102	116	16 x M14	135	45100	475	90	62	14.6
14	14	TLK 451 200x260	200 x 260	88	102	116	18 x M14	135	53400	535	96	67	15.3
15	15	TLK 451 220x285	220 x 285	96	108	124	15 x M16	210	68600	624	94	66	20.2
16	16	TLK 451 240x305	240 x 305	96	108	124	20 x M16	210	99800	832	115	82	21.8
17	17	TLK 451 260x325	260 x 325	96	108	124	20 x M16	210	108000	832	106	77	23.4
18	18	TLK 451 280x355	280 x 355	96	110	130	15 x M20	410	137000	979	122	85	30
19	19	TLK 451 300x375	300 x 375	96	110	130	16 x M20	410	156000	1044	121	86	31.2
20	20	TLK 451 320x405	320 x 405	124	136	156	20 x M20	410	208000	1305	104	75	48
21	21	TLK 451 340x425	340 x 425	124	136	156	20 x M20	410	221000	1305	98	71	51
22	22	TLK 451 360x455	360 x 455	140	155	177	20 x M22	550	291000	1617	101	73	69
23	23	TLK 451 380x475	380 x 475	140	155	177	20 x M22	550	307000	1617	96	70	73
24	24	TLK 451 400x495	400 x 495	140	155	177	22 x M22	550	355000	1778	100	74	76
