Locking assembly - self-centering TLK 450

Manufacturer	Rexnord Tollok srl
Description	Locking Assembly, self centering, d= 25 mm, D= 50 mm
Part number	TLK 450 25x50

CAD models

Request for quotation

Product selection

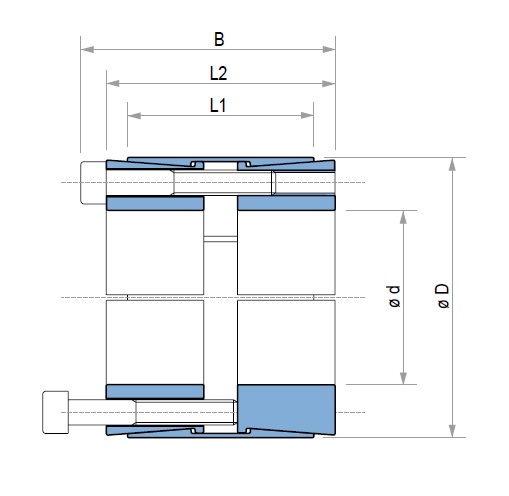

Index	Selector	Part Number	d x D (mm)	L1 (mm)	L2 (mm)	B (mm)	Tightening Screws (DIN 912)	Tightening torque - Ms (N.m)	Torque - Mt (N.m)	Axial force - F ax (kN)	Surface Pressure on Shaft - pw (N/mm²)	Surface Pressure on Hub - pn (N/mm²)	Weight (kg)
1	1	TLK 450 25x50	25 x 50	39	45	51	8 x M6	17	950	76	245	122	0.5
2	2	TLK 450 28x55	28 x 55	39	45	51	8 x M6	17	1070	76	219	111	0.6
3	3	TLK 450 30x55	30 x 55	39	45	51	8 x M6	17	1150	76	204	111	0.6
4	4	TLK 450 35x60	35 x 60	39	45	51	8 x M6	17	1340	76	175	102	0.7
5	5	TLK 450 38x65	38 x 65	39	45	51	8 x M6	17	1450	76	161	94	0.7
6	6	TLK 450 40x65	40 x 65	39	45	51	8 x M6	17	1530	76	153	94	0.7
7	7	TLK 450 42x75	42 x 75	56	64	72	8 x M8	41	2970	141	188	105	1
8	8	TLK 450 45x75	45 x 75	56	64	72	8 x M8	41	3150	141	175	105	0.9
9	9	TLK 450 48x80	48 x 80	56	64	72	8 x M8	41	4000	166	164	98	1.4
10	10	TLK 450 50x80	50 x 80	56	64	72	8 x M8	41	4150	166	158	98	1.3
11	11	TLK 450 55x85	55 x 85	56	64	72	8 x M8	41	4550	166	143	93	1.5
12	12	TLK 450 60x90	60 x 90	56	64	72	10 x M8	41	6200	207	164	109	1.6
13	13	TLK 450 65x95	65 x 95	56	64	72	10 x M8	41	6750	207	152	104	1.8
14	14	TLK 450 70x110	70 x 110	70	78	88	10 x M10	83	11550	330	179	114	3
15	15	TLK 450 75x115	75 x 115	70	78	88	10 x M10	83	12350	330	167	109	3.3
16	16	TLK 450 80x120	80 x 120	70	78	88	12 x M10	83	15800	396	188	125	3.5
17	17	TLK 450 85x125	85 x 125	70	78	88	12 x M10	83	16800	396	177	120	3.7
18	18	TLK 450 90x130	90 x 130	70	78	88	12 x M10	83	17800	396	167	115	3.8
19	19	TLK 450 95x135	95 x 135	70	78	88	12 x M10	83	18800	396	158	111	5
20	20	TLK 450 100x145	100 x 145	90	100	112	12 x M12	145	28800	576	170	117	6
21	21	TLK 450 110x155	110 x 155	90	100	112	12 x M12	145	31700	576	155	110	6.2
22	22	TLK 450 120x165	120 x 165	90	100	112	14 x M12	145	40300	673	165	120	7.2
23	23	TLK 450 130x180	130 x 180	104	116	130	12 x M14	230	51400	791	155	112	10
24	24	TLK 450 140x190	140 x 190	104	116	130	14 x M14	230	64600	923	168	124	10.2
25	25	TLK 450 150x200	150 x 200	104	116	130	16 x M14	230	79100	1055	179	135	10.8
26	26	TLK 450 160x210	160 x 210	104	116	130	16 x M14	230	84400	1055	168	128	11.5
27	27	TLK 450 170x225	170 x 225	134	146	162	14 x M16	355	109000	1283	149	113	17
28	28	TLK 450 180x235	180 x 235	134	146	162	16 x M16	355	132000	1466	161	124	18.5
29	29	TLK 450 190x250	190 x 250	134	146	162	16 x M16	355	139000	1466	153	116	21.5
30	30	TLK 450 200x260	200 x 260	134	146	162	16 x M16	355	146500	1466	145	112	22
31	31	TLK 450 220x285	220 x 285	134	146	162	20 x M16	355	201500	1833	165	127	25
32	32	TLK 450 240x305	240 x 305	134	146	162	22 x M16	355	242000	2017	166	131	27
33	33	TLK 450 260x325	260 x 325	134	146	162	22 x M16	355	262000	2017	154	123	30
34	34	TLK 450 280x355	280 x 355	165	177	197	20 x M20	690	400000	2862	164	130	46
35	35	TLK 450 300x375	300 x 375	165	177	197	22 x M20	690	472000	3148	169	135	50
36	36	TLK 450 320x405	320 x 405	165	177	197	22 x M20	690	503500	3148	158	125	60
37	37	TLK 450 340x425	340 x 425	165	177	197	24 x M20	690	583500	3434	162	130	65
38	38	TLK 450 360x455	360 x 455	190	202	224	22 x M22	930	705000	3918	152	120	89
39	39	TLK 450 380x475	380 x 475	190	202	224	26 x M22	930	880000	4631	170	136	93
40	40	TLK 450 400x495	400 x 495	190	202	224	26 x M22	930	926000	4631	162	131	98
