Locking assembly - self-centering TLK 130

Manufacturer	Rexnord Tollok srl
Description	Locking Assembly, self centering, d= 18 mm, D= 47 mm
Part number	TLK 130 18x47

CAD models

Request for quotation

Product selection

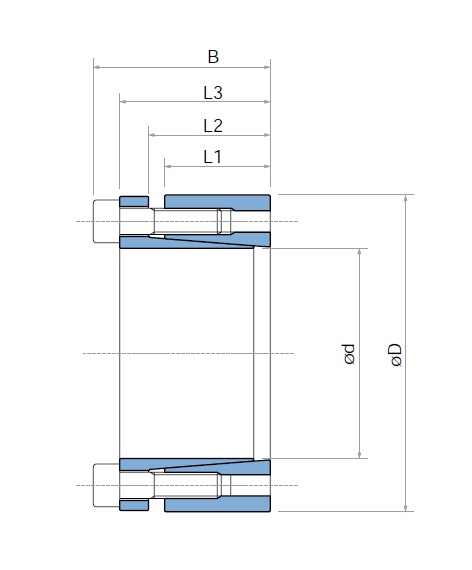

Index	Selector	Part Number	d x D (mm)	L1 (mm)	L2 (mm)	L3 (mm)	B (mm)	Torque - Mt (N.m)	Axial force - F ax (kN)	Surface Pressure on Shaft - pw (N/mm²)	Surface Pressure on Hub - pn (N/mm²)	Tightening Screws (DIN 912)	Tightening torque - Ms (N.m)	Weight (kg)
1	1	TLK 130 18x47	18 x 47	26	30	41	47	490	55	310	119	6 x M6	17	0.4
2	2	TLK 130 19x47	19 x 47	26	30	41	47	510	55	294	119	6 x M6	17	0.4
3	3	TLK 130 20x47	20 x 47	26	30	41	47	540	55	279	119	6 x M6	17	0.4
4	4	TLK 130 22x47	22 x 47	26	30	41	47	600	55	254	119	6 x M6	17	0.4
5	5	TLK 130 24x50	24 x 50	26	30	41	47	650	55	233	112	6 x M6	17	0.4
6	6	TLK 130 25x50	25 x 50	26	30	41	47	680	55	223	112	6 x M6	17	0.4
7	7	TLK 130 28x55	28 x 55	26	30	41	47	760	55	199	102	6 x M6	17	0.5
8	8	TLK 130 30x55	30 x 55	26	30	41	47	820	55	186	102	6 x M6	17	0.5
9	9	TLK 130 32x60	32 x 60	26	30	41	47	1160	73	233	124	8 x M6	17	0.6
10	10	TLK 130 35x60	35 x 60	26	30	41	47	1270	73	213	124	8 x M6	17	0.5
11	11	TLK 130 38x65	38 x 65	26	30	41	47	1380	73	196	115	8 x M6	17	0.6
12	12	TLK 130 40x65	40 x 65	26	30	41	47	1450	73	186	115	8 x M6	17	0.6
13	13	TLK 130 42x75	42 x 75	30	35	49	57	2120	101	213	119	6 x M8	41	1
14	14	TLK 130 45x75	45 x 75	30	35	49	57	2270	101	199	119	6 x M8	41	1
15	15	TLK 130 48x80	48 x 80	30	35	49	57	3230	135	248	149	8 x M8	41	1.1
16	16	TLK 130 50x80	50 x 80	30	35	49	57	3370	135	238	149	8 x M8	41	1
17	17	TLK 130 55x85	55 x 85	30	35	49	57	3700	135	217	140	8 x M8	41	1.1
18	18	TLK 130 60x90	60 x 90	30	35	49	57	4040	135	199	132	8 x M8	41	1.2
19	19	TLK 130 65x95	65 x 95	30	35	49	57	4380	135	183	125	8 x M8	41	1.3
20	20	TLK 130 70x110	70 x 110	40	45	59	69	7490	214	203	129	8 x M10	83	2.2
21	21	TLK 130 75x115	75 x 115	40	45	59	69	8020	214	189	123	8 x M10	83	2.5
22	22	TLK 130 80x120	80 x 120	40	45	59	69	8560	214	177	118	8 x M10	83	2.6
23	23	TLK 130 85x125	85 x 125	40	45	59	69	11370	268	209	142	10 x M10	83	2.8
24	24	TLK 130 90x130	90 x 130	40	45	59	69	12040	268	197	136	10 x M10	83	2.7
25	25	TLK 130 95x135	95 x 135	40	45	59	69	12700	268	187	131	10 x M10	83	2.9
26	26	TLK 130 100x145	100 x 145	46	52	68	80	15580	312	180	124	8 x M12	145	3.9
27	27	TLK 130 110x155	110 x 155	46	52	68	80	17140	312	163	116	8 x M12	145	4.2
28	28	TLK 130 120x165	120 x 165	46	52	68	80	23370	390	187	136	10 x M12	145	4.8
29	29	TLK 130 130x180	130 x 180	46	52	68	80	30380	467	207	150	12 x M12	145	5
30	30	TLK 130 140x190	140 x 190	50	57	76	90	37410	535	203	149	10 x M14	230	6.5
31	31	TLK 130 150x200	150 x 200	50	57	76	90	48100	641	227	170	12 x M14	230	7
32	32	TLK 130 160x210	160 x 210	50	57	76	90	51300	641	213	162	12 x M14	230	7
33	34	TLK 130 170x225	170 x 225	50	57	76	90	63600	748	234	176	14 x M14	230	8.5
34	35	TLK 130 180x235	180 x 235	50	57	76	90	67350	748	221	169	14 x M14	230	9
35	36	TLK 130 190x250	190 x 250	50	57	76	90	76150	802	224	170	15 x M14	230	10.5
36	37	TLK 130 200x260	200 x 260	50	57	76	90	85500	855	227	175	16 x M14	230	10.5
37	38	TLK 130 210x270	210 x 270	50	57	76	90	89800	855	216	168	16 x M14	230	11
38	39	TLK 130 220x285	220 x 285	64	72	94	110	98050	891	168	130	12 x M16	355	16.5
39	40	TLK 130 240x305	240 x 305	64	72	94	110	133700	1114	192	151	15 x M16	355	18
