SAFEGATE S 3B LR ILP - Access Control Safety Light Curtain with Automatic/Manual Restart and EDM (No Integrated Muting Function), Long Range, With Integrated Laser Pointer

Manufacturer	ReeR Safety
Description	Access Control Safety Light Curtain with Automatic/Manual Restart and EDM (No Integrated Muting Function), Long Range, With Integrated Laser Pointer
Manufacturer Part Number	1390034
Safety level (SIL / PL)	Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4
Safety outputs	2 OSSD PNP (400 mA at 24 VDC)
Approvals	CE, TÜV, UL
Response Time (ms)	5.5
Detection	Access Control
Resolution (mm)	Multi-Beam

Potected Height (mm)	810
Max Operating Range (m)	80
Number of beams	3
Restart	Automatic/Manual

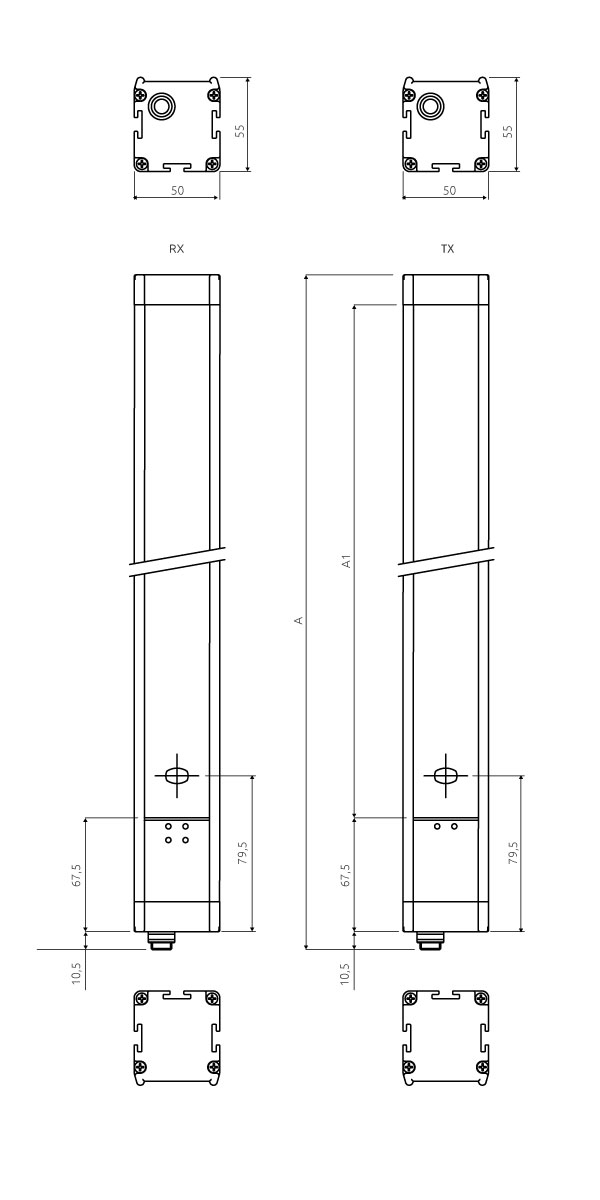

Overall Height (mm) (A)	951
Controlled Area (mm) (A1)	856
Fastening	Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional)
Degree of protection	IP65 - IP67
Connections	M12 5-pole male connector (emitter), M12 8-pole male connector (receiver)

CAD models

Request for quotation

Product selection

Index	Selector	Manufacturer Part Number	Safety level (SIL / PL)	Power supply (VDC)	Safety outputs	Approvals	Response Time (ms)	Detection	Resolution (mm)	Potected Height (mm)	Max Operating Range (m)	Number of beams	Restart	Cross Section (mm)	Overall Height (mm) (A)	Controlled Area (mm) (A1)	Safety Functions	Functioning System	Max. length of the connection cables (m)	Built-in Status lamp	Fastening	Degree of protection	Operating temperature (°C)	Connections	MTTFd (ISO 13849-1) (years)	PFHd (IEC 61508)
1	1	1390034	Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4	24 ± 20%	2 OSSD PNP (400 mA at 24 VDC)	CE, TÜV, UL	5.5	Access Control	Multi-Beam	810	80	3	Automatic/Manual	50 x 55	951	856	Integrated	Emitter / Receiver	100	No	Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional)	IP65 - IP67	-30 ... 55	M12 5-pole male connector (emitter), M12 8-pole male connector (receiver)	262.4	9.63E-09
