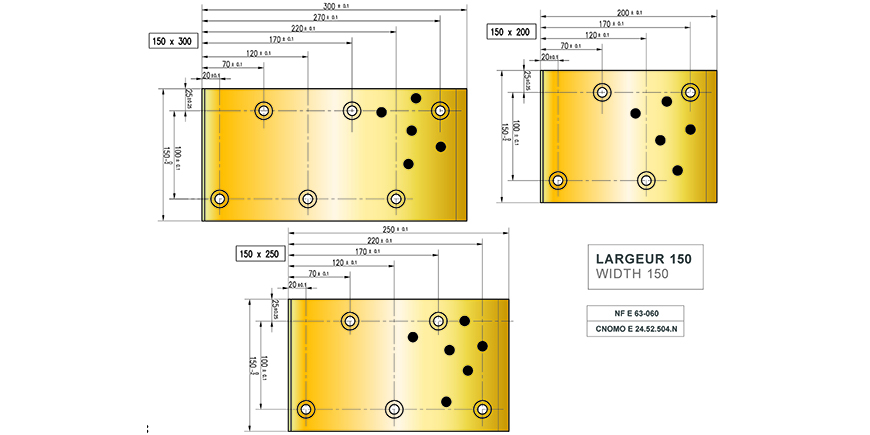

REF. 5125 WEAR PLATE (BRASS WITH INSERTS)

NF E 63-060

Manufacturer	RABOURDIN
Description	REF. 5125 WEAR PLATE (BRASS WITH INSERTS) L1=150 L=200 mm
Manufacturer Part Number	5125-150-200
E-Shop link	https://eshop.rabourdin.fr/en/brass-wear-plate/264-plaque-de-frottement-laiton-avec-inserts-epaisseur-20-mm.html
L1 mm	150
L mm	200

CAD models

Request for quotation

Product selection

Index	Selector	Manufacturer Part Number	Description	L1 mm	L mm
1	1	5125-70-100	REF. 5125 WEAR PLATE (BRASS WITH INSERTS) L1=70 L=100 mm	70	100
2	7	5125-70-150	REF. 5125 WEAR PLATE (BRASS WITH INSERTS) L1=70 L=150 mm	70	150
3	8	5125-70-200	REF. 5125 WEAR PLATE (BRASS WITH INSERTS) L1=70 L=200 mm	70	200
4	9	5125-100-100	REF. 5125 WEAR PLATE (BRASS WITH INSERTS) L1=100 L=100 mm	100	100
5	10	5125-100-150	REF. 5125 WEAR PLATE (BRASS WITH INSERTS) L1=100 L=150 mm	100	150
6	11	5125-100-200	REF. 5125 WEAR PLATE (BRASS WITH INSERTS) L1=100 L=200 mm	100	200
7	12	5125-100-250	REF. 5125 WEAR PLATE (BRASS WITH INSERTS) L1=100 L=250 mm	100	250
8	13	5125-100-300	REF. 5125 WEAR PLATE (BRASS WITH INSERTS) L1=100 L=300 mm	100	300
9	14	5125-150-100	REF. 5125 WEAR PLATE (BRASS WITH INSERTS) L1=150 L=100 mm	150	100
10	2	5125-150-150	REF. 5125 WEAR PLATE (BRASS WITH INSERTS) L1=150 L=150 mm	150	150
11	3	5125-150-200	REF. 5125 WEAR PLATE (BRASS WITH INSERTS) L1=150 L=200 mm	150	200
12	4	5125-150-250	REF. 5125 WEAR PLATE (BRASS WITH INSERTS) L1=150 L=250 mm	150	250
13	5	5125-150-300	REF. 5125 WEAR PLATE (BRASS WITH INSERTS) L1=150 L=300 mm	150	300
14	6	5125-200-100	REF. 5125 WEAR PLATE (BRASS WITH INSERTS) L1=200 L=100 mm	200	100

Documentation
