By QUIRI HYDROMECANIQUE

TL: Self-locking linear T-LOCK actuator with Gas tappings

Manufacturer	QUIRI HYDROMECANIQUE
Description	Self-locking linear T-LOCK actuator with Gas tappings, type TL 15/5
Part number	761011/000
Length	120
Height	65

Width	74
Force	15 kN
Stroke	10 mm
Rod diameter	14

CAD models

Request for quotation

Product selection

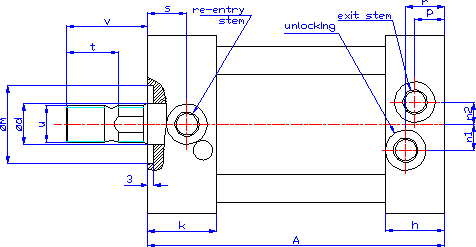

Index	Selector	Type	Maximum force at... b (kN)	Thrust (kN)	Traction force (kN)	Stroke (mm)	Unlocking pressure (bar)	Reference	Ø Rod	Rod thread	Re-entry stem	Exit stem	Unlocking
1	1	TL 15/5	15	15 -> 186 b	15 -> 230 b	10	500	761011/000	14	M12 x 1,25	G 1/8	G 1/8	G 1/4
2	2	TL 15/3	15	15 -> 186 b	15 -> 230 b	10	300	761049/000	14	M12 x 1,25	G 1/8	G 1/8	G 1/4
3	3	TL 30/5	30	30 -> 238 b	30 -> 299 b	10	500	761014/000	18	M16 x 1,5	G 1/4	G 1/4	G 1/4
4	4	TL 30/3	30	30 -> 238 b	30 -> 299 b	10	300	761050/000	18	M16 x 1,5	G 1/4	G 1/4	G 1/4
5	5	TL 50/5	50	50 -> 210 b	50 -> 250 b	10	500	761017/000	22	M20 x 1,5	G 1/4	G 1/4	G 1/4
6	6	TL 50/3	50	50 -> 210 b	50 -> 250 b	10	300	761018/000	22	M20 x 1,5	G 1/4	G 1/4	G 1/4

Rod return (mm)

Contact the supplier
