By QUIRI HYDROMECANIQUE

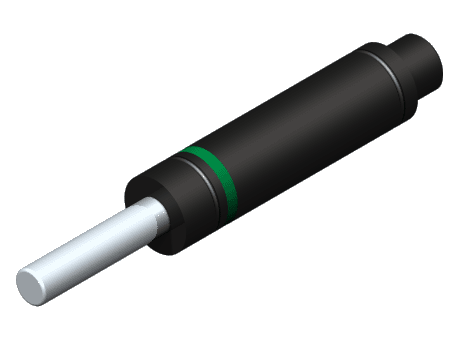

RMG 50: Micro gas spring, 50 daN, Identification: Green, Fixing by threaded base M18x1.5

Manufacturer	QUIRI HYDROMECANIQUE
Description	Micro gas spring, 50 daN, Identification: Green, stroke 10 mm, fitting with threaded base M18x1.5
Part number	442061/200
Stroke	10 mm
Length	65 mm
Length2	55 mm
Max pressure	45 bar

CAD models

Request for quotation

Product selection

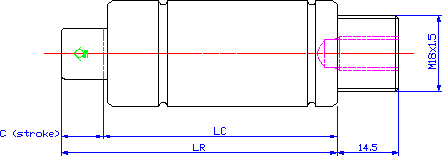

Index	Selector	Stroke (mm)	Length rod out (mm)	Length rod returned (mm)	Nitrogen pressure (bar)	Reference
1	1	10	65	55	45	442061/200
2	2	16	77	61	45	442062/200
3	3	25	95	70	45	442063/200
4	4	38	121	83	45	442066/200
5	5	50	145	95	45	442064/200
6	6	63	171	108	45	442067/200
7	7	80	205	125	45	442065/200
8	8	100	245	145	45	442068/200
9	9	125	295	170	45	442069/200

Documentation

Gas springs catalog
