By QUIRI HYDROMECANIQUE

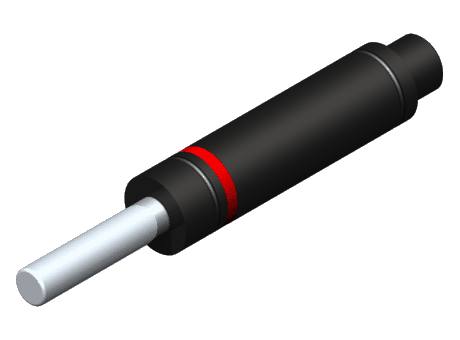

RMG 150: Micro gas spring, 150 daN, Identification: Red, Fixing by threaded base M18x1.5

Manufacturer	QUIRI HYDROMECANIQUE
Description	Micro gas spring, 150 daN, Identification: Red, stroke 10 mm, fitting with threaded base M18x1.5
Part number	442081/200
Stroke	10 mm
Length	65 mm
Length2	55 mm
Max pressure	135 bar

CAD models

Request for quotation

Product selection

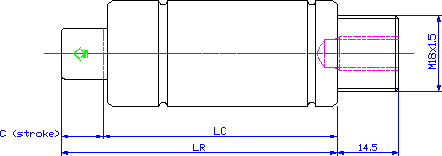

Index	Selector	Stroke (mm)	Length rod out (mm)	Length rod returned (mm)	Nitrogen pressure (bar)	Reference
1	1	10	65	55	135	442081/200
2	2	16	77	61	135	442082/200
3	3	25	95	70	135	442083/200
4	4	38	121	83	135	442086/200
5	5	50	145	95	135	442084/200
6	6	63	171	108	135	442087/200
7	7	80	205	125	135	442085/200
8	8	100	245	145	135	442088/200
9	9	125	295	170	135	442089/200

Documentation

Gas springs catalog
