RL: Self-locking pivoting R-LOCK actuator with Gas tappings

Manufacturer	QUIRI HYDROMECANIQUE
Description	Self-locking pivoting R-LOCK actuator with Gas tappings, type RL 15/5 D
Part number	RL 15/5 D
Length	155
Height	65

Width	74
Force	1.5
Stroke	10 mm
Rod diameter	14

CAD models

Request for quotation

Product selection

Index	Selector	Type	Actuator category (Ton.)	Traction force (kN)	Stroke (mm)	Direction of rotation	Unlocking pressure (bar)	Ø Rod	Rod thread	Re-entry stem	Exit stem	Unlocking
1	1	RL 15/5 D	1.5	15 -> 230 b	10	right	500	14	M12 x 1,25	G 1/8	G 1/8	G 1/4
2	7	RL 15/5 G	1.5	15 -> 230 b	10	left	500	14	M12 x 1,25	G 1/8	G 1/8	G 1/4
3	2	RL 15/3 D	1.5	15 -> 230 b	10	right	300	14	M12 x 1,25	G 1/8	G 1/8	G 1/4
4	8	RL 15/3 G	1.5	15 -> 230 b	10	left	300	14	M12 x 1,25	G 1/8	G 1/8	G 1/4
5	3	RL 30/5 D	3	30 -> 299 b	10	right	500	18	M16 x 1,5	G 1/4	G 1/4	G 1/4
6	9	RL 30/5 G	3	30 -> 299 b	10	left	500	18	M16 x 1,5	G 1/4	G 1/4	G 1/4
7	4	RL 30/3 D	3	30 -> 299 b	10	right	300	18	M16 x 1,5	G 1/4	G 1/4	G 1/4
8	10	RL 30/3 G	3	30 -> 299 b	10	left	300	18	M16 x 1,5	G 1/4	G 1/4	G 1/4
9	5	RL 50/5 D	5	50 -> 250 b	10	right	500	22	M20 x 1,5	G 1/4	G 1/4	G 1/4
10	11	RL 50/5 G	5	50 -> 250 b	10	left	500	22	M20 x 1,5	G 1/4	G 1/4	G 1/4
11	6	RL 50/3 D	5	50 -> 250 b	10	right	300	22	M20 x 1,5	G 1/4	G 1/4	G 1/4
12	12	RL 50/3 G	5	50 -> 250 b	10	left	300	22	M20 x 1,5	G 1/4	G 1/4	G 1/4

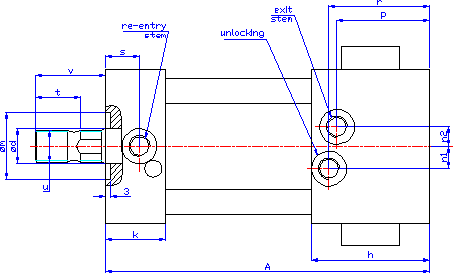

Rod position

Contact the supplier
