By QUIRI HYDROMECANIQUE

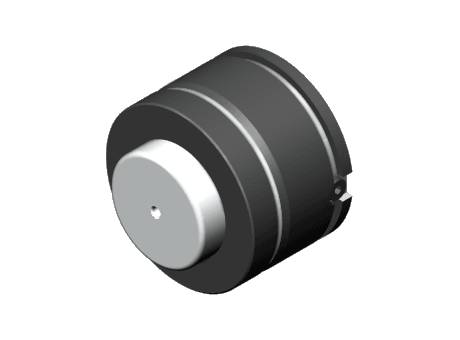

RGP 6600: High power gas spring, 66000 N

Manufacturer	QUIRI HYDROMECANIQUE
Description	High power gas spring RGP 6600, 66000 N, stroke 16 mm
Part number	443 384 000
Max outlet pressure	150 bar
Force	66000 N
Force2	101000 N
Length	100 mm

CAD models

Request for quotation

Product selection

Index	Selector	Stroke (mm)	Rod actuation pressure (bar)	Force F1 piston out (N)	Force F2 piston return (N)	Length rod out (mm)	Reference
1	1	16	150	66000	101000	100	443 384 000
2	2	19	150	66000	101000	106	443 385 000
3	3	25	150	66000	101000	118	443 386 000
4	4	32	150	66000	101000	132	443 387 000
5	5	38	150	66000	101000	144	443 388 000
6	6	50	150	66000	101000	168	443 389 000
7	7	63	150	66000	101000	194	443 390 000
8	8	75	150	66000	101000	218	443 391 000
9	9	80	150	66000	101000	228	443 392 000
10	10	100	150	66000	101000	268	443 393 000
11	11	125	150	66000	101000	318	443 394 000

Documentation

Gas springs catalog

Contact the supplier

QUIRI HYDROMECANIQUE

Designer, manufacturer of high pressure hydraulic machines and components and pneumatic components for the industry
