By QUIRI HYDROMECANIQUE

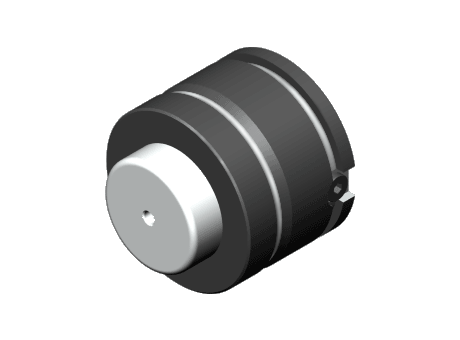

RGP 4200: High power gas spring, 42000 N

Manufacturer	QUIRI HYDROMECANIQUE
Description	High power gas spring RGP 4200, 42000 N, stroke 16 mm
Part number	443 364 000
Max outlet pressure	150 bar
Force	42000 N
Force2	67300 N
Length	90 mm

CAD models

Request for quotation

Product selection

Index	Selector	Stroke (mm)	Rod actuation pressure (bar)	Force F1 piston out (N)	Force F2 piston return (N)	Length rod out (mm)	Reference
1	1	16	150	42000	67300	90	443 364 000
2	2	19	150	42000	67300	96	443 365 000
3	3	25	150	42000	67300	108	443 366 000
4	4	32	150	42000	67300	122	443 367 000
5	5	38	150	42000	67300	134	443 368 000
6	6	50	150	42000	67300	158	443 369 000
7	7	63	150	42000	67300	184	443 370 000
8	8	75	150	42000	67300	208	443 371 000
9	9	80	150	42000	67300	218	443 372 000
10	10	100	150	42000	67300	258	443 373 000
11	11	125	150	42000	67300	308	443 374 000
