By QUIRI HYDROMECANIQUE

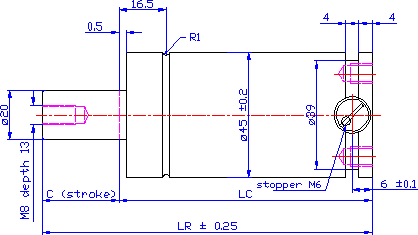

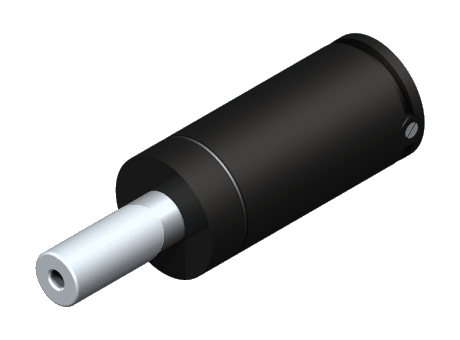

RGH 500: Reduced height gas spring 5000 N

Manufacturer	QUIRI HYDROMECANIQUE
Description	Reduced height gas spring 500 daN, stroke 6 mm
Part number	442261/000
Stroke	6 mm
Max pressure	150 bar

Force	471 daN
Length	62 mm
Length2	56 mm
Rod diameter	20
Body diameter	45

CAD models

Request for quotation

Product selection

Index	Selector	Stroke (mm)	Pressure (bar)	Force F1 piston out (daN)	Length rod out (mm)	Length rod returned (mm)	Reference
1	10	6	150	471	62	56	442261/000
2	1	12.7	150	471	75.4	62.7	442262/000
3	2	19	150	471	88	69	442263/000
4	3	25	150	471	100	75	442264/000
5	4	38	150	471	126	88	442265/000
6	5	50	150	471	150	100	442266/000
7	6	63	150	471	176	113	442267/000
8	7	80	150	471	210	130	442268/000
9	8	100	150	471	250	150	442269/000
10	9	125	150	471	300	175	442270/000

Documentation

Gas springs catalog
