By QUIRI HYDROMECANIQUE

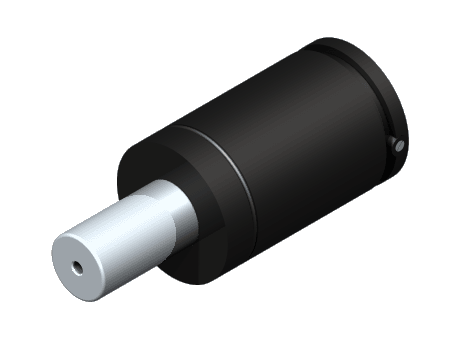

RGH 1500: Reduced height gas spring 15000 N

Manufacturer	QUIRI HYDROMECANIQUE
Description	Reduced height gas spring 1500 daN, stroke 25 mm
Part number	442561/000
Stroke	25 mm
Max pressure	150 bar

Force	1526 daN
Length	110 mm
Length2	85 mm
Rod diameter	36
Body diameter	75

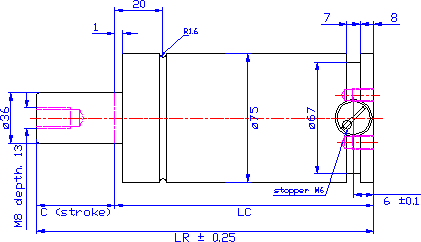

CAD models

Request for quotation

Product selection

Index	Selector	Stroke (mm)	Pressure (bar)	Force F1 piston out (daN)	Length rod out (mm)	Length rod returned (mm)	Reference
1	1	25	150	1526	110	85	442561/000
2	2	38.1	150	1526	136.2	98.1	442562/000
3	3	50	150	1526	160	110	442563/000
4	4	63.5	150	1526	187	123.5	442564/000
5	5	80	150	1526	220	140	442565/000
6	6	100	150	1526	260	160	442566/000

Documentation

Gas springs catalog
