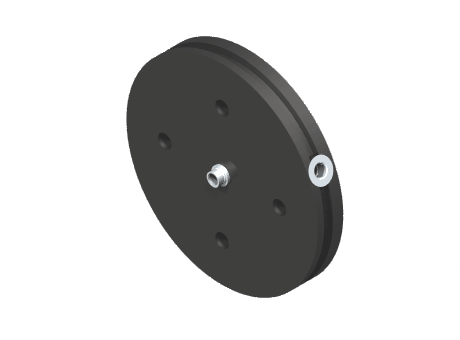

RGC 18300: Base with lateral orifice and connection

Manufacturer	QUIRI HYDROMECANIQUE
Description	Base with lateral orifice and connection for RGC 18300
Part number	443181/100
Outer diameter	150.1 mm
Fixing	M10
Inner diameter	142 m
Height	20 m

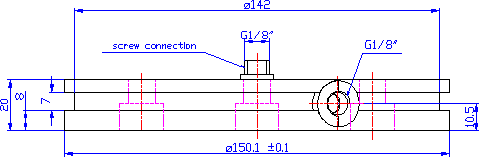

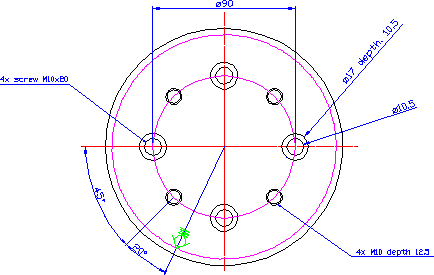

CAD models

Product selection

Index	Selector	External Ø (mm)	Screw fitting	Reference
1	1	150.1	M10	443181/100
