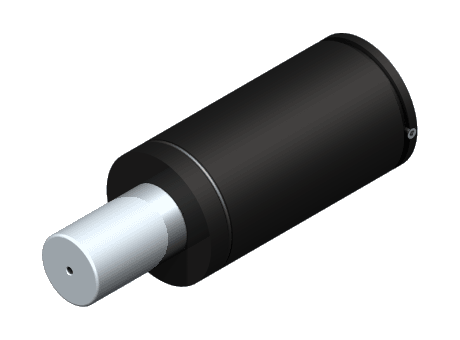

RG 5000: ISO gas-spring 50000 N

CAD models

Product selection

Index	Selector	Stroke (mm)	Expansion pressure (bar)	Force F1 piston out (N)	Force F2 piston return (N)	Length rod out (mm)	Length rod returned (mm)	Reference
1	1	10	150	49800	62500	160	150	442927/000
2	2	25	150	49800	70200	190	165	442911/000
3	3	38	150	49800	74000	216	178	442928/000
4	4	50	150	49800	76200	240	190	442912/000
5	5	63	150	49800	74300	266	203	442929/000
6	6	80	150	49800	73200	300	220	442913/000
7	7	100	150	49800	74200	340	240	442914/000
8	8	125	150	49800	75200	390	265	442915/000
9	9	160	150	49800	76200	460	300	442996/000
10	10	200	150	49800	76700	540	340	442997/000
11	11	250	150	49800	77200	640	390	442998/000
12	12	300	150	49800	77700	740	440	442999/000
