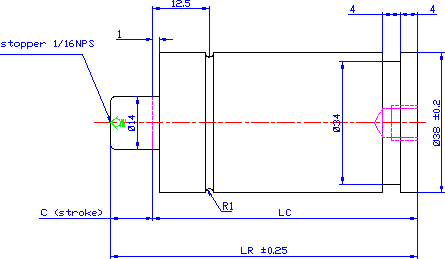

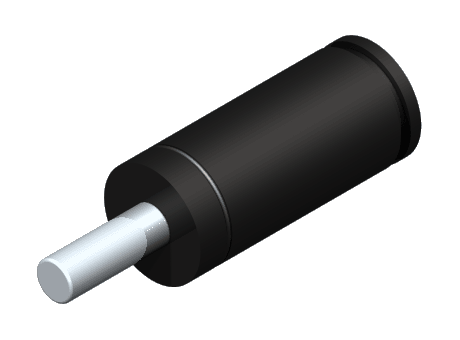

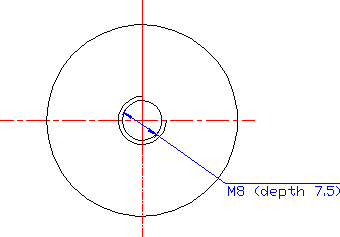

RG 250 (M8): ISO gas-spring 2500 N

CAD models

Product selection

Index	Selector	Stroke (mm)	Expansion pressure (bar)	Force F1 piston out (daN)	Length rod out (mm)	Length rod returned (mm)	Reference
1	1	10	150	231	70	60	442141/000
2	2	16	150	231	82	66	442142/000
3	3	25	150	231	100	75	442143/000
4	4	38	150	231	126	88	442146/000
5	5	50	150	231	150	100	442144/000
6	6	80	150	231	210	130	442145/000
