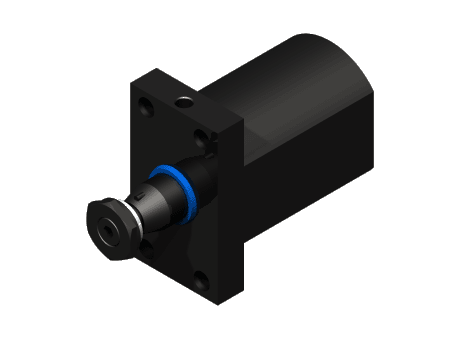

PT26: Double-effect pivoting actuator supplied via tappings beneath ring

Manufacturer	QUIRI HYDROMECANIQUE
Description	Double-effect pivoting actuator supplied through tappings on ring, type PT 26 D
Part number	191083/000
Length	152 mm
Rod diameter	25
Height	102
Width	60
Stroke	12 mm

CAD models

Product selection

Index	Selector	Type	Ø Rod	Rod thread	Force at 100 b (kN)	Stroke (mm)	Direction of rotation	Length rod out (mm)	Reference
1	1	PT 26 D	25	M16 x 1,5	7.7	12	right	152	191083/000
2	2	PT 26 G	25	M16 x 1,5	7.7	12	left	152	191083/100

Option

Position
