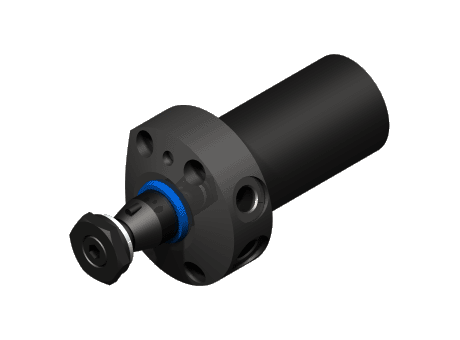

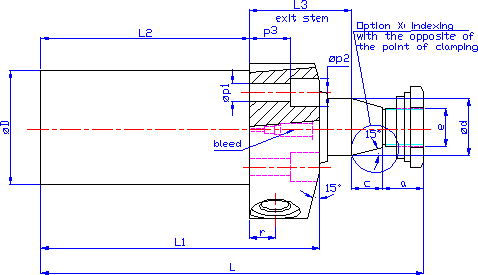

PT: Double-effect pivoting actuator supplied via tappings

Manufacturer	QUIRI HYDROMECANIQUE
Description	Double-effect pivoting actuator, supplied through tappings, type PT 11 D
Part number	191108/000
Length	121 mm
Body diameter	36
Rod diameter	18
Stroke	8 mm

CAD models

Request for quotation

Product selection

Index	Selector	Type	Ø Rod	Rod thread	Connection Ø	Force at 250 b (kN)	Stroke (mm)	Direction of rotation	Length rod out (mm)	Reference
1	1	PT 11 D	18	M12 x 1,5	G 1/8	4	8	right	121	191108/000
2	5	PT 11 G	18	M12 x 1,5	G 1/8	4	8	left	121	191108/100
3	2	PT 21 D	25	M16 x 1,5	G 1/4	8	12	right	152	191134/000
4	6	PT 21 G	25	M16 x 1,5	G 1/4	8	12	left	152	191134/100
5	3	PT 31 D	36	M24 x 1,5	G 1/4	16	12	right	195	191116/000
6	7	PT 31 G	36	M24 x 1,5	G 1/4	16	12	left	195	191116/100
7	4	PT 41 D	42	M30 x 1,5	G 1/4	24	12	right	218	191117/000
8	8	PT 41 G	42	M30 x 1,5	G 1/4	24	12	left	218	191117/100

Option

Position

Contact the supplier
