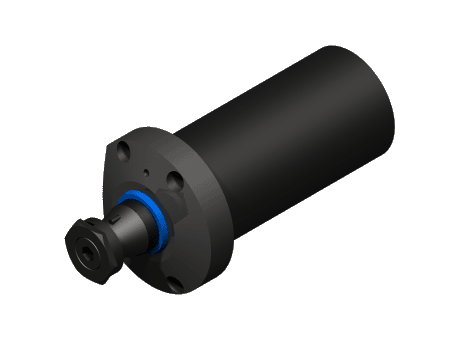

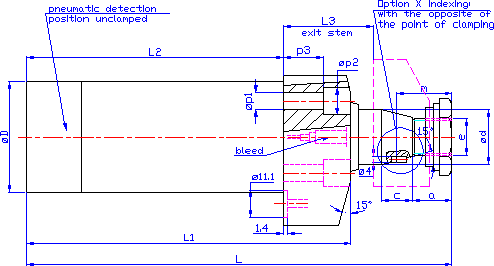

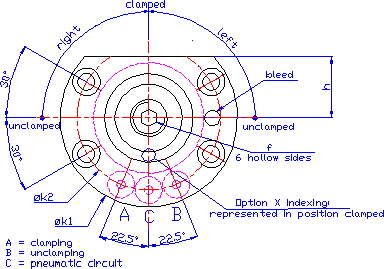

PL**X B: Double effect pivoting actuator with pneumatic sensor

Manufacturer	QUIRI HYDROMECANIQUE
Description	Double-effect pivoting actuator with pneumatic sensor, type PL 31 DXB
Part number	192048/050
Body diameter	80
Rod diameter	36
Length	242.5 mm
Stroke	12 mm

CAD models

Request for quotation

Product selection

Index	Selector	Type	Ø Rod	Rod thread	Force at 160 b (kN)	Stroke (mm)	Direction of rotation	Length rod out (mm)	Reference
1	2	PL 31 DXB	36	M24 x 1,5	10	12	right	242.5	192048/050
2	4	PL 31 GXB	36	M24 x 1,5	10	12	left	242.5	192048/150
3	1	PL 41 DXB	42	M30 x 1,5	15	12	right	261	192049/050
4	3	PL 41 GXB	42	M30 x 1,5	15	12	left	261	192049/150
