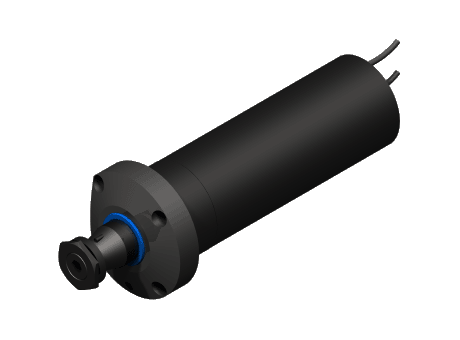

PL31 D/G EX: Double effect pivoting actuator with electrical detection

Manufacturer	QUIRI HYDROMECANIQUE
Description	Double-effect pivoting actuator with electrical detectionPL 31 DX E
Part number	192026/000
Body diameter	80
Rod diameter	36
Length	319 mm
Stroke	12 mm

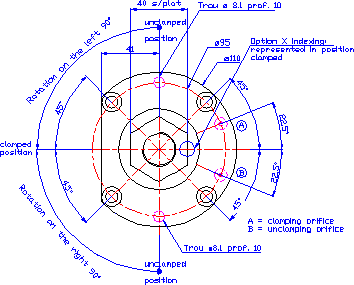

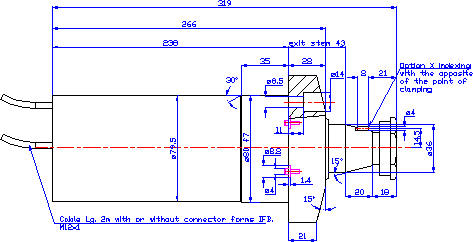

CAD models

Product selection

Index	Selector	Type	Ø Rod	Rod thread	Force at 160 b (kN)	Stroke (mm)	Direction of rotation	Length rod out (mm)	Reference
1	1	PL 31 DX E	36	M24 x 1,5	10	12	right	319	192026/000
2	2	PL 31 GX E	36	M24 x 1,5	10	12	left	319	192026/100

Position
