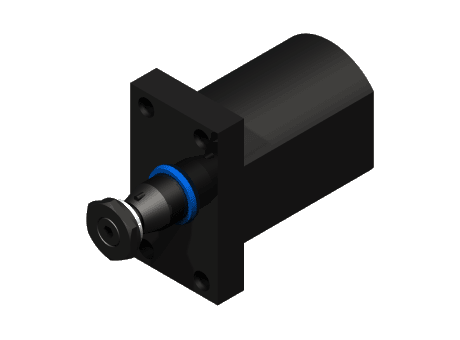

PL26: Double-effect pivoting actuator supplied through spotfaced bore beneath ring

Manufacturer	QUIRI HYDROMECANIQUE
Description	Double-effect pivoting actuator supplied through spotfaced bores beneath ring, type PL 26 D
Part number	191131/000

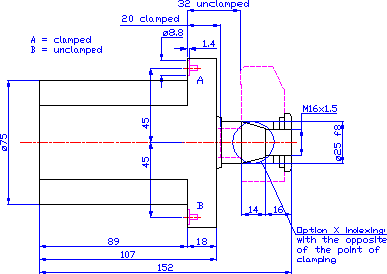

Length	152 mm
Rod diameter	25

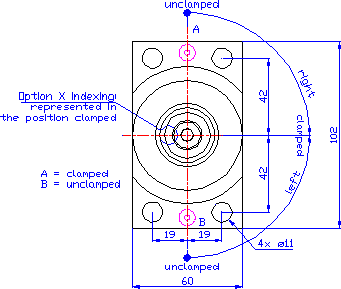

Height	102
Width	60
Stroke	12 mm

CAD models

Product selection

Index	Selector	Type	Ø Rod	Rod thread	Force at 100 b (kN)	Stroke (mm)	Direction of rotation	Length rod out (mm)	Reference
1	1	PL 26 D	25	M16 x 1,5	7.7	12	right	152	191131/000
2	2	PL 26 G	25	M16 x 1,5	7.7	12	left	152	191131/100

Option

Position
