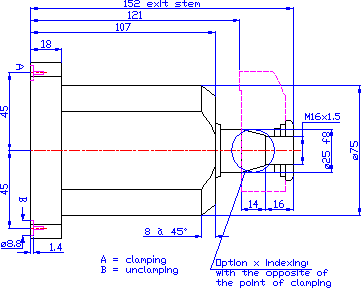

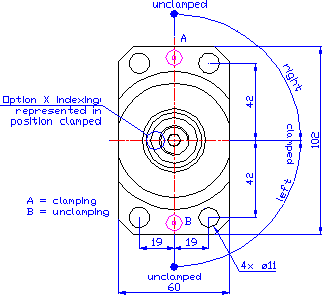

PF26: Double-effect pivoting actuator supplied through base spotfaced bore

Manufacturer	QUIRI HYDROMECANIQUE
Description	Double-effect pivoting actuator supplied through base spotfaced bore, type PF 26 D
Part number	191130/000
Length	152 mm
Rod diameter	25
Height	19
Width	42
Stroke	12 mm

CAD models

Product selection

Index	Selector	Type	Ø Rod	Rod thread	Force at 100 b (kN)	Stroke (mm)	Direction of rotation	Length rod out (mm)	Reference
1	1	PF 26 D	25	M16 x 1,5	7.7	12	right	152	191130/000
2	2	PF 26 G	25	M16 x 1,5	7.7	12	left	152	191130/100

Option

Position
