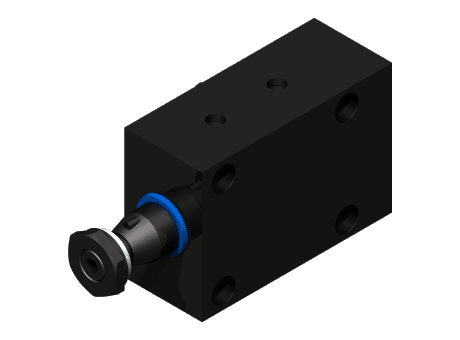

PBF: Double-effect flanged-block pivoting actuator

Manufacturer	QUIRI HYDROMECANIQUE
Description	Double-effect flanged-block pivoting actuator type PBF 11 D
Part number	191071/000
Length	121 mm
Height	60
Width	36
Rod diameter	18
Stroke	8 mm

CAD models

Request for quotation

Product selection

Index	Selector	Type	Ø Rod	Rod thread	Force at 250 b (kN)	Stroke (mm)	Direction of rotation	Length rod out (mm)	Reference
1	1	PBF 11 D	18	M12 x 1,5	4	8	right	121	191071/000
2	5	PBF 11 G	18	M12 x 1,5	4	8	left	121	191071/100
3	2	PBF 21 D	25	M16 x 1,5	8	12	right	152	191072/000
4	6	PBF 21 G	25	M16 x 1,5	8	12	left	152	191072/100
5	3	PBF 31 D	36	M24 x 1,5	16	12	right	195	191079/000
6	7	PBF 31 G	36	M24 x 1,5	16	12	left	195	191079/100
7	4	PBF 41 D	42	M30 x 1,5	24	12	right	218	191081/000
8	8	PBF 41 G	42	M30 x 1,5	24	12	left	218	191081/100

Optional

Position
