By QUIRI HYDROMECANIQUE

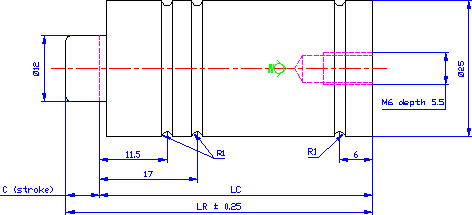

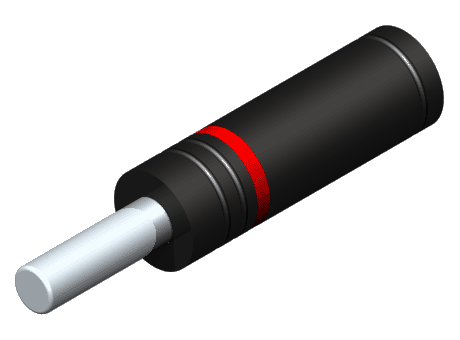

MRG 150: Micro gas spring, 150 daN, Identification: Red

Manufacturer	QUIRI HYDROMECANIQUE
Description	Micro gas spring, 150 daN, Identification: Red, stroke 7 mm
Part number	442080/600
Stroke	7 mm
Length	56 mm
Length2	49 mm
Max pressure	135 bar

CAD models

Request for quotation

Product selection

Index	Selector	Type	Stroke (mm)	Length rod out (mm)	Length rod returned (mm)	Nitrogen pressure (bar)	Reference
1	1	MRG150-7	7	56	49	135	442080/600
2	2	MRG150-10	10	62	52	135	442081/600
3	12	MRG150-13	12.7	67.4	54.7	135	442089/600
4	3	MRG150-15	15	72	57	135	442088/600
5	4	MRG150-16	16	74	58	135	442082/600
6	5	MRG150-25	25	92	67	135	442083/600
7	6	MRG150-38	38	118	80	135	442086/600
8	7	MRG150-50	50	142	92	135	442084/600
9	8	MRG150-63	63.5	172	108.5	135	442087/600
10	9	MRG150-77	77	202	122	135	442085/620
11	10	MRG150-80	80	205	125	135	442085/600
12	11	MRG150-100	100	245	145	135	442109/600
13	13	MRG150-125	125	295	170	135	442119/600

Documentation

Gas springs catalog
