By QUIRI HYDROMECANIQUE

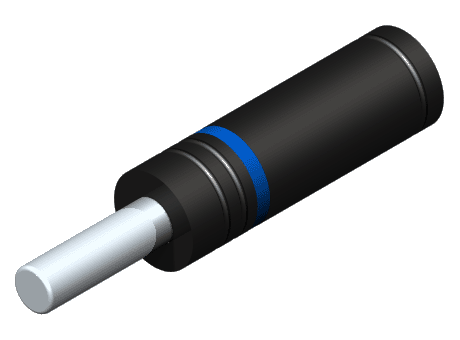

MRG 100: Micro gas spring, 100 daN, Identification: Blue

Manufacturer	QUIRI HYDROMECANIQUE

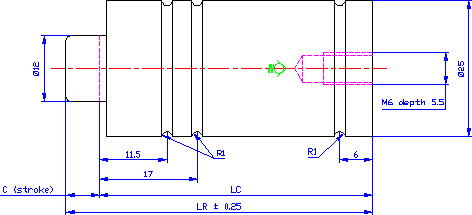

Description	Micro gas spring, 100 daN, Identification: Blue, stroke 7 mm
Part number	442070/600
Stroke	7 mm
Length	56 mm
Length2	49 mm
Max pressure	90 bar

CAD models

Request for quotation

Product selection

Index	Selector	Type	Stroke (mm)	Length rod out (mm)	Length rod returned (mm)	Nitrogen pressure (bar)	Reference
1	1	MRG100-7	7	56	49	90	442070/600
2	2	MRG100-10	10	62	52	90	442071/600
3	12	MRG100-13	12.7	67.4	54.7	90	442079/600
4	3	MRG100-15	15	72	57	90	442078/600
5	4	MRG100-16	16	74	58	90	442072/600
6	5	MRG100-25	25	92	67	90	442073/600
7	6	MRG100-38	38	118	80	90	442076/600
8	7	MRG100-50	50	142	92	90	442074/600
9	8	MRG100-63	63.5	172	108.5	90	442077/600
10	9	MRG100-77	77	202	122	90	442075/620
11	10	MRG100-80	80	205	125	90	442075/600
12	11	MRG100-100	100	245	145	90	442108/600
13	13	MRG100-125	125	295	170	90	442118/600

Documentation

Gas springs catalog
