FSG: Single-effect threaded actuator - large stroke

Manufacturer	QUIRI HYDROMECANIQUE

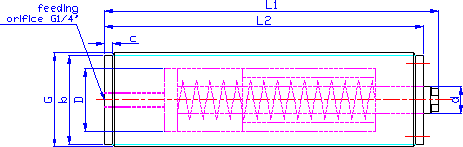

Description	Single-effect threaded actuator - large stroke, type FSG 25
Part number	111112/000
Length	128 mm
Diameter	36
Rod diameter	10
Stroke	25 mm
Max pressure	350 bar

CAD models

Request for quotation

Product selection

Index	Selector	Type	Ø Bore	Ø Rod	Connection Ø	Rod tapping	Max. operating pressure (bar)	Force at 100 b (kN)	Force at 350 b (kN)	Stroke (mm)	Length rod returned (mm)	Reference
1	1	FSG 25	25	10	G 1/4	M6	350	5	17.1	25	128	111112/000
2	2	FSG 40	32	12	G 1/4	M6	350	8.2	28	35	161	111113/000
3	3	FSG 65	40	16	G 1/4	M10	350	12.8	44	45	202	111114/000
4	4	FSG 100	50	20	G 1/4	M12	350	20	68.7	60	241	112094/000
5	5	FSG 160	63	25	G 1/4	M16	350	31.8	109	80	306	112095/000

Rod extension (mm)

Contact the supplier
