By QUIRI HYDROMECANIQUE

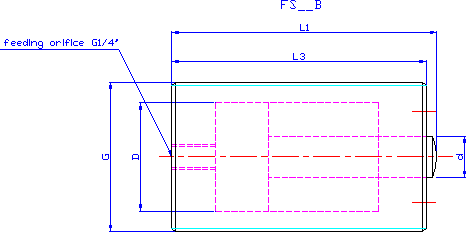

FS: Single-effect threaded actuator

Manufacturer	QUIRI HYDROMECANIQUE
Description	Single-effect threaded actuator, type FS 5T
Part number	111106/300
Length	49.5
Diameter	22
Rod diameter	5
Max pressure	350 bar
Stroke	10 mm

CAD models

Request for quotation

Product selection

Index	Selector	Type	Ø Bore	Ø Rod	Rod tapping	Connection Ø	Max. operating pressure (bar)	Force at 100 b (kN)	Force at 350 b (kN)	Stroke (mm)	Length rod returned (mm)	Reference
1	1	FS 5	10	5	M3	G 1/4	350	0.8	2.7	10	52.5	111106/***
2	2	FS 10	16	8	M5	G 1/4	350	2	7	12	61.5	111107/***
3	3	FS 15	20	10	M6	G 1/4	350	3.2	11	12	66.5	111108/***
4	4	FS 25	25	14	M8	G 1/4	350	5	17.1	16	74.5	111109/***
5	5	FS 40	32	16	M10	G 1/4	350	8.2	28	16	79.5	111110/***
6	6	FS 65	40	20	M12	G 1/4	350	12.8	44	20	101.5	111111/***
7	7	FS 100	50	25	M16	G 1/4	350	20	68.7	20	104.5	112092/***
8	8	FS 160	63	32	M20	G 1/4	350	31.8	109	25	120.5	112093/***

Model

Rod extension (mm)

Contact the supplier
