By QUIRI HYDROMECANIQUE

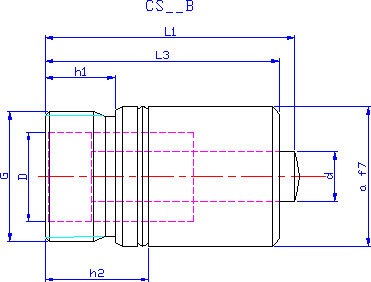

CS: Single effect cartridge actuator

Manufacturer	QUIRI HYDROMECANIQUE
Description	Single-effect cartridge actuator, type CS 5T
Part number	111100/100
Length	37
Body diameter	16
Rod diameter	5
Max pressure	350 bar
Stroke	10 mm

CAD models

Request for quotation

Product selection

Index	Selector	Type	Ø Bore	Ø Rod	Rod tapping	Max. operating pressure (bar)	Force at 100 b (kN)	Force at 350 b (kN)	Stroke (mm)	Length rod returned (mm)	Reference
1	1	CS 5	10	5	M3	350	0.8	2.7	10	40	111100/***
2	2	CS 10	16	8	M5	350	2	7	12	50	111101/***
3	3	CS 15	20	10	M6	350	3.2	11	12	54	111102/***
4	4	CS 25	25	14	M8	350	5	17.1	16	62	111103/***
5	5	CS 40	32	16	M10	350	8.2	28	16	67	111104/***
6	6	CS 65	40	20	M12	350	12.8	44	20	89	111105/***
7	7	CS 100	50	25	M16	350	20	68.7	20	92	112090/***
8	8	CS 160	63	32	M20	350	31.8	109	25	108	112091/***

Model

Rod extension (mm)

Contact the supplier
