By QUIRI HYDROMECANIQUE

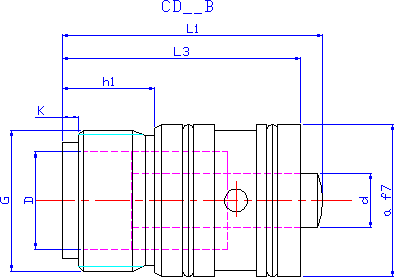

CD: Double-effect cartridge actuator

Manufacturer	QUIRI HYDROMECANIQUE
Description	Double-effect cartridge actuator CD15.20 T
Part number	CD15.20 T
Bore / shaft diameter	20
Rod diameter	10

Internal thread	M6
Max pressure	350 bar
Stroke	20 mm
Tightening torque max	110 N.m

CAD models

Request for quotation

Product selection

Index	Selector	Type	Ø Bore	Ø Rod	Rod tapping	Max. operating pressure (bar)	Force 100 b (P) (kN)	Force 100 b (T) (kN)	Force 350 b (P)	Force 350 b (T)	Stroke (mm)	Length rod returned (mm)	Tightening torque (N.m)
1	1	CD15	20	10	M6	350	3.2	2.3	11.2	8	20	51	110
2	2	CD25	25	14	M8	350	5	3.4	17.5	11.9	25	59	180
3	3	CD40	32	16	M10	350	8.2	6.2	28.7	21.7	25	64	350
4	4	CD65	40	20	M12	350	12.8	9.6	44.8	33.6	40	85	630
5	5	CD100	50	25	M16	350	20	15	70	45.5	40	88	1150
6	6	CD160	63	32	M20	350	32	24	112	84	50	103	2300

Model

Rod extension (mm)

Documentation
