By QUIRI HYDROMECANIQUE

BM: Medium clamping arm

Manufacturer	QUIRI HYDROMECANIQUE
Description	Clamping arm, medium with internally tapping, type BM 11
Part number	811153/000
Length	55 mm
Width	30 mm
Height	17 mm

CAD models

Request for quotation

Product selection

Index	Selector	Type	Description	Length (mm)	Width (mm)	Height (mm)	Reference
1	1	BM 11	with internally tapping	55	30	17	811153/000

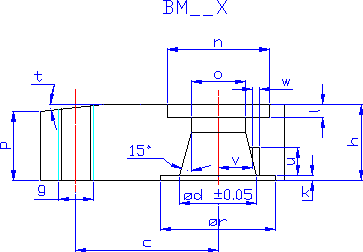

2	5	BM 11 X	indexed, with tapping	55	30	17	811153/050

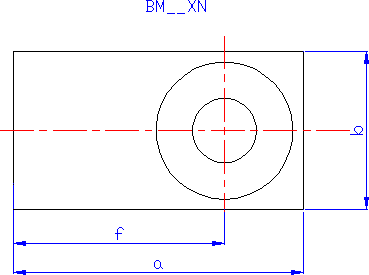

3	2	BM 11 X N	indexed, without chamfer or tapping	55	30	17	811153/150
4	6	BM 21	with internally tapping	85	40	23	811154/000
5	3	BM 21 X	indexed, with tapping	85	40	23	811154/050
6	7	BM 21 X N	indexed, without chamfer or tapping	85	40	23	811154/150
7	4	BM 31	with internally tapping	108	55	30	811164/000
8	8	BM 31 X	indexed, with tapping	108	55	30	811164/050
9	9	BM 31 X N	indexed, without chamfer or tapping	108	55	30	811164/150
10	10	BM 41	with internally tapping	125	70	33	811155/000
11	11	BM 41 X	indexed, with tapping	125	70	33	811155/050
12	12	BM 41 X N	indexed, without chamfer or tapping	125	70	33	811155/150

Contact the supplier

QUIRI HYDROMECANIQUE

Designer, manufacturer of high pressure hydraulic machines and components and pneumatic components for the industry
