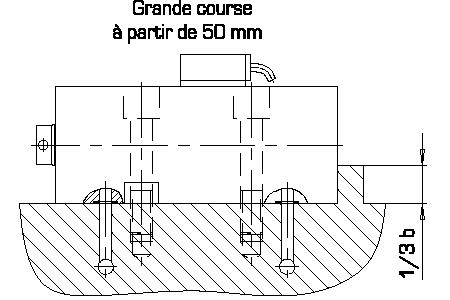

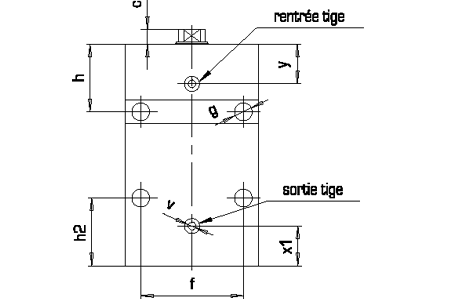

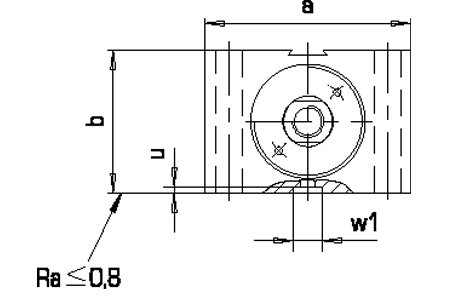

BDA: Aluminium actuator block - F1: Side flange

Manufacturer	QUIRI HYDROMECANIQUE
Description	Aluminium actuator block, side flange BDA25.20 F1
Part number	BDA25.20 F1
Length	65
Width	45

CAD models

Product selection

Index	Selector	Type	Piston Ø D (mm)	Piston rod Ø d (mm)	Max. operating pressure (bar)	Thrust under 350 bar (kN)	Volume of oil displaced / 10mm travel, Return (cm³)	Volume of oil displaced / 10mm travel, Output (cm³)	Rod tapping
1	1	BDA25.**	25	16	350	17	2.9	4.91	M10x15
2	2	BDA40.**	32	20	350	28	4.9	8.05	M12x15
3	3	BDA65.**	40	25	350	44	7.7	12.56	M16x25
4	4	BDA100.**	50	32	350	69	11.6	19.63	M20x30
5	5	BDA160.**	63	40	350	109	18.6	31.17	M27x40
6	6	BDA250.**	80	50	350	176	30.6	50.26	M30x40
7	7	BDA400.**	100	63	350	275	47.4	78.54	M42x60
