AVVH12: Screw-in anti-vibration mounting-block

Manufacturer	QUIRI HYDROMECANIQUE
Description	Screw-in anti-vibration mounting-block, type AVVH 12
Part number	751109/000

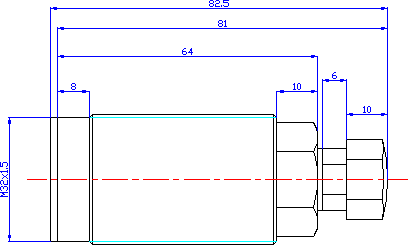

Length	82.5 m
Rod diameter	16
Max pressure	350 bar

CAD models

Product selection

Index	Selector	Type	Max. operating pressure (bar)	Minimum spring force (N)	Maximum spring force (N)	Charge admitted at 350 b (kN)	Stroke (mm)	Ø Rod	fixing Ø	Reference	Mass (kg)
1	1	AVVH 12	350	10	23	6	8	16	M30x1,5	751109/000	0.25

Rod extension (mm)
