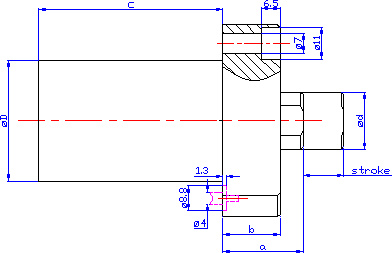

AVL: Anti-vibration mounting-block with spotfaced head

Manufacturer	QUIRI HYDROMECANIQUE
Description	Anti-vibration mounting-block with spotfaced head, type AVL 12R
Part number	751056/000
Body diameter	42
Rod diameter	20
Stroke	12 mm

CAD models

Product selection

Index	Selector	Type	Ø Rod	Rod tapping	Force at 150 b (kN)	Clamping force at 300 b (kN)	Stroke (mm)	Reference
1	1	AVL 12	20	M12	2.8	7	12	751056/***
2	2	AVL 22	30	M12	4.7	12.5	12	751057/***

Model

Rod extension (mm)
