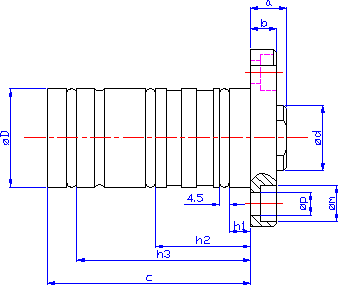

AVC: Cartridge anti-vibration mounting

Manufacturer	QUIRI HYDROMECANIQUE
Description	Cartridge anti-vibration mounting-block, type AVC 11R
Part number	751042/000
Body diameter	30
Rod diameter	20
Stroke	12 mm

CAD models

Product selection

Index	Selector	Type	Ø Rod	Rod tapping	Force at 150 b (kN)	Clamping force at 300 b (kN)	Stroke (mm)	Reference
1	1	AVC 11	20	M12	2	5	12	751042/***
2	2	AVC 21	30	M12	3.7	10	18	751046/***
3	3	AVC 41	37	M12	6.3	20	20	751081/***

Model

Rod extension (mm)
