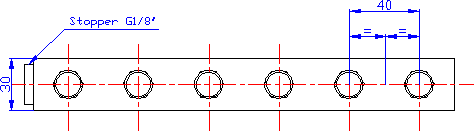

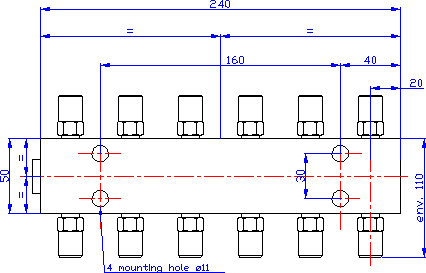

12 connection collector with connections in same plane

Manufacturer	QUIRI HYDROMECANIQUE
Description	12 connection collector with connections in same plane
Part number	834927/000
Height	110 m
Length	240 m
Width	30 m

CAD models

Product selection

Level of detail

Index	Selector	Size (mm)	Connection	Reference
1	1	110x240x30	Screw-in connection G1/8" Series 1218	834927/000

Designer, manufacturer of high pressure hydraulic machines and components and pneumatic components for the industry
