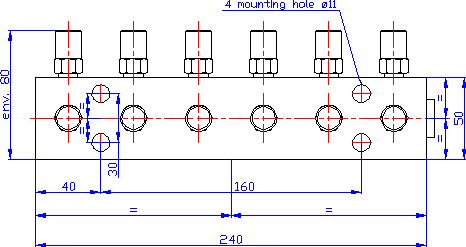

12 connection collector with connections at right angles

Manufacturer	QUIRI HYDROMECANIQUE
Description	12 connection collector with connections at right angles
Part number	834928/000
Height	80 m
Length	240 m
Width	60 m

CAD models

Product selection

Level of detail

Index	Selector	Size (mm)	Connection	Reference
1	1	80x240x60	Screw-in connection G1/8" Series 1219	834928/000

Designer, manufacturer of high pressure hydraulic machines and components and pneumatic components for the industry
