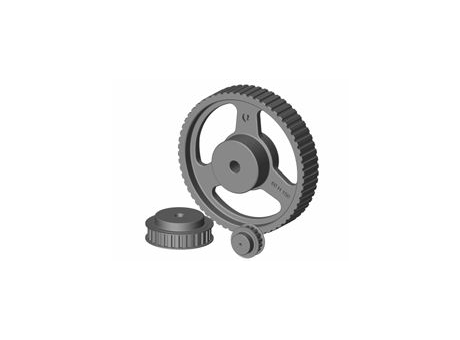

XXH 400

CAD models

Product selection

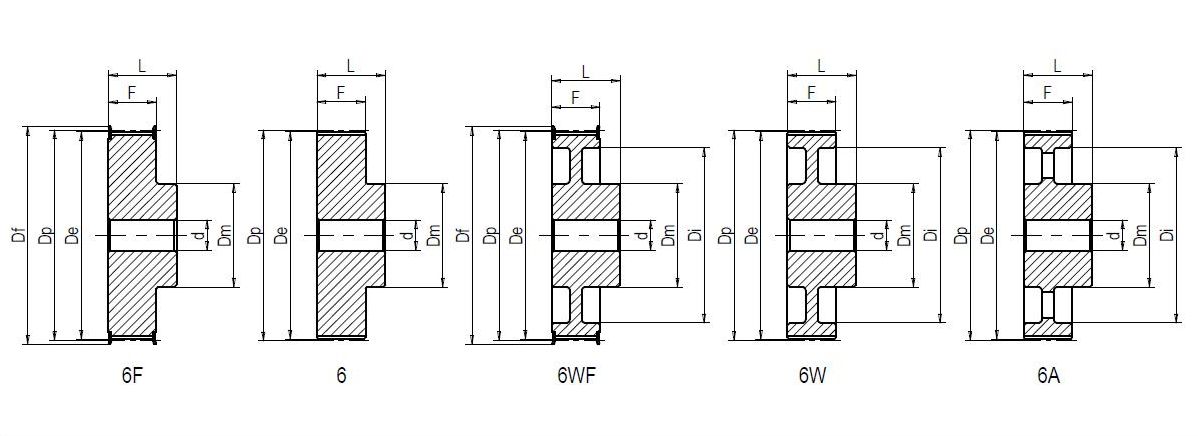

Index	Selector	Part Number	Description	Material	N. of teeth	Dp	De	Df	Dm	Di	F	LU	d
1	1	01E01840	18 XXH 400-6F	Cast iron	18	181,91	178,87	197,0	140,0	-	118,0	140,0	32,0
2	2	01E01940	19 XXH 400-6F	Cast iron	19	192,02	188,97	205,0	140,0	-	118,0	140,0	32,0
3	3	01E02040	20 XXH 400-6F	Cast iron	20	202,13	199,08	211,0	150,0	-	118,0	140,0	32,0
4	4	01E02140	21 XXH 400-6F	Cast iron	21	212,23	209,19	226,0	150,0	-	118,0	140,0	32,0
5	5	01E02240	22 XXH 400-6F	Cast iron	22	222,34	219,29	240,0	150,0	-	118,0	140,0	32,0
6	6	01E02440	24 XXH 400-6	Cast iron	24	242,55	239,50	-	150,0	-	120,7	140,0	32,0
7	7	01E02540	25 XXH 400-6W	Cast iron	25	252,66	249,61	-	150,00	200,00	120,70	140,0	32,0
8	8	01E02640	26 XXH 400-6W	Cast iron	26	262,76	259,72	-	150,00	210,00	120,70	140,0	32,0
9	9	01E02740	27 XXH 400-6W	Cast iron	27	272,87	269,82	-	150,00	220,00	120,70	140,0	32,0
10	10	01E03040	30 XXH 400-6W	Cast iron	30	303,19	300,14	-	150,00	250,00	120,70	140,0	32,0
11	11	01E03440	34 XXH 400-6W	Cast iron	34	343,62	340,57	-	170,00	290,00	120,70	140,0	32,0
12	12	01E04040	40 XXH 400-6W	Cast iron	40	404,25	401,21	-	170,00	350,00	120,70	140,0	32,0
13	13	01E04840	48 XXH 400-6W	Cast iron	48	485,10	482,06	-	170,00	430,00	120,70	140,0	32,0
14	14	01E06040	60 XXH 400-6A	Cast iron	60	606,38	603,33	-	185,00	550,00	120,70	140,0	38,0
15	15	01E07240	72 XXH 400-6A	Cast iron	72	727,66	724,61	-	200,00	670,00	120,70	140,0	38,0
16	16	01E09040	90 XXH 400-6A	Cast iron	90	909,57	906,52	-	200,00	845,00	120,70	140,0	38,0
