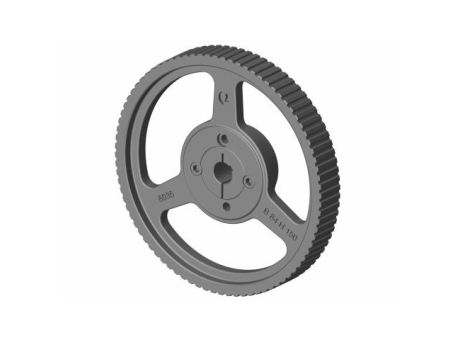

XXH 200

CAD models

Product selection

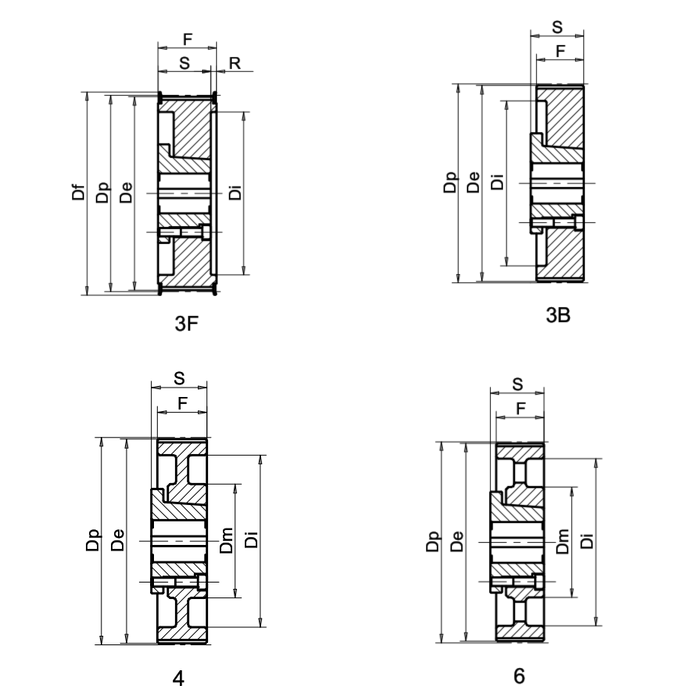

Index	Selector	Part Number	Description	Material	Bush	Max. Bore	Dp	De	Df	Dm	Di	F	S	R
1	1	02E01820	B 18 XXH 200-3F	Cast iron	7540	75	181.91	178.87	197	-	141	64.2	59	5.2
2	2	02E02020	B 20 XXH 200-3F	Cast iron	7540	75	202.13	199.08	211	-	160	64.2	59	5.2
3	3	02E02220	B 22 XXH 200-3F	Cast iron	7540	75	222.34	219.29	240	-	180	64.2	59	5.2
4	4	02E02420	B 24 XXH 200-3B	Cast iron	7060	75	242.55	239.5	-	-	188.5	66.7	79	-
5	5	02E02620	B 26 XXH 200-4	Cast iron	7060	75	262.76	259.79	-	150	207	66.7	79	-
6	6	02E03020	B 30 XXH 200-4	Cast iron	7060	75	303.19	300.14	-	150	247	66.7	79	-
7	7	02E03420	B 34 XXH 200-4	Cast iron	7060	75	343.62	340.57	-	150	287	66.7	79	-
8	8	02E04020	B 40 XXH 200-6	Cast iron	7060	75	404.25	401.21	-	150	348	66.7	79	-
9	9	02E04820	B 48 XXH 200-6	Cast iron	8070	80	485.1	482.06	-	176	429	66.7	88	-
10	10	02E06020	B 60 XXH 200-6	Cast iron	9085	95	606.38	603.33	-	190	547	66.7	105	-
11	11	02E07220	B 72 XXH 200-6	Cast iron	9085	95	727.66	724.61	-	190	668	66.7	105	-
12	12	02E09020	B 90 XXH 200-6	Cast iron	10095	100	909.57	906.52	-	220	850	66.7	119	-
